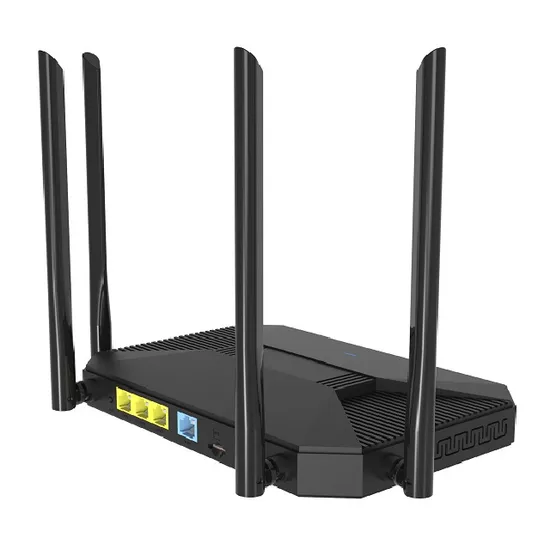

LTE Router with SIM Card Slot and with 3*10/100Mbps Wan/LAN Ports
| US$57.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
LTE-A30
Transfer Rate
10/100Mbps
Firewall
Firewall
Ports
≤4
Port Structure
Modular
Application
SOHO
Network
LTE
Performance
Line-Rate Router
Architecture
Crossbar System
WiFi Standard
802.11n
WiFi Speed
300Mbps
4G Speed
150Mbps in Dl
WiFi Frequency
2.4GHz
Wan
1*10/100Mbps
LAN
3*10/100Mbps
SIM Card Slot
1
WiFi Antenna
5dBi Omni WiFi Antenna
4G Antenna
5dBi External 4G Antenna
Transport Package
Gift Box
Specification
300Mbps in Wireless
Trademark
OEM & ODM
Origin
China
HS Code
8517623610
Production Capacity
100000PCS/Month
Product Description
New Type Top Sale LTE Router With SIM card slot and with 3*10/100Mbps WAN/LAN portsProduct Description LTE-A30 is an indoor 4G wireless router supports VPN; Comply with IEEE 802.11b/g/n MIMO standard, the data rate up to 300Mbps, more than 30 end users can access into it; With SIM card slot, build in QUECTEL LTE module, it support FDD-LTE/TDD-LTE for worldwide use with 150Mbps downlink speed. Beside that, there are 3*10/100Mbps WAN/LAN ports, automatically switch to WAN Ethernet if 4G Ethernet.
Main Features:
1.Comply with IEEE 802.11b/g/n Standard, 2.4GHz frequency, the data rate is 300Mbps for faster Wi-Fi speed.
2.Build in 3G/4G SIM card slot, support LTE-TDD/LTE-FDD, WCDMA/CDMA and GSM networking. The band is adjustable, can comply with all operator in the world
3.High RF power design, with omni 2.4G/4G antenna, more wireless coverage, better signal strength and more stable performance.
4.It support VPN(L2TP, PPTP, auto VPN), meet with industrial applications such as chain stores, ATM...
5.Firmware support cloud remote configure and management, hardware with watchdog function, device can auto-reboot and auto-recovery if have problems, no extra maintenance fee.
Hardware Spec:
| 4G Module information | |||||
| LTE Module Model | Quectel EC25, LTE-CAT4 Quectel EC20, LTE-CAT4 Quectel EC200, LTE-CAT4 | ||||
| Band Support | GSM/WCDMA/LTE-FDD/LTE-TDD | ||||
| LTE Data Rate | LTE-FDD: max 150(DL)/Max 50(UL) ,LTE-TDD: max 130(DL)/Max 35(UL) | ||||
| Name | Details | ||||
| CPU | MT7628 | ||||
| FLASH | 8MB | ||||
| SDRAM | 64MB | ||||
| Name | Details | ||||
| LAN | 3*10/100MBase-T LAN, support IEEE 802.3/802.3u auto-negotiation | ||||
| WAN/LAN | 1*10/100MBase-T WAN/LAN, support IEEE 802.3/802.3u auto-negotiation; It is LAN port when work as 4G Router, WAN port when work as wireless router Support PPPoE, Automatic IP, Static IP, PPTP, L2TP, 4G | ||||
| 4G Antenna Connector (Selective) | External Female SMA Connector, Impedance 50Ω | ||||
| WIFI Antenna Connector | External Male SMA Connector, Impedance 50Ω | ||||
| SIM Card Slot | Support SIM Card Slot | ||||
| RESET | Press it 10 seconds, Reset to factory default | ||||
| LED Light | WAN, LAN, Wi-Fi, System | ||||
| RF Power | 802.11b | 11M | 17±2dBm | 1M | 19±2dBm |
| 802.11g | 54M | 16±2dBm | 6M | 18±2dBm | |
| 802.11n HT20 | MCS7 | 15±2dBm | MCS0 | 17±2dBm | |
| 802.11n HT40 | MCS7 | 15±2dBm | MCS0 | 17±2dBm | |
| Receive Sensitivity | 802.11b | 11M | -85dBm | 1M | -94dBm |
| 802.11g | 54M | -72dBm | 6M | -90dBm | |
| 802.11n HT20 | MCS7 | -70dBm | MCS0 | -88dBm | |
| 802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm | |
| EVM | 802.11b: ≤-10dB ; 802.11g: ≤-25 dB ; 802.11n: ≤-28 dB | ||||
| PPM | ±20ppm | ||||
| Channel | 1~13, Support auto channel | ||||
| Standard | 802.11b/g/n | ||||
| Bandwidth | HT20, HT20/HT40 | ||||
| Security | Open System, Shared key, WPA-Personal, WPA2-Personal, WPA-Auto-Personal, WPA-Enterprise(Radius), WPA2-Enterprise(Radius), WPA-Auto-Enterprise(Radius), Radius with 802.1x | ||||
| RF Power Adjustable | Support | ||||
| Name | Content | ||||
| Working Temperature | -30ºC ~ +55ºC | ||||
| Max Working Temperature | -40ºC ~ +85ºC (Throughput some decrease) | ||||
| Storage Temperature | -40ºC ~ +70ºC | ||||
| Humidity | 5%~95% (No Condensation) | ||||
| Name | Content | ||||
| Wi-Fi | Support Auto Channal, Guest SSID, SSID hide, Wireless MAC filter, white and black list | ||||
| Net | PPPoE, Automatic IP, Static IP, L2TP, PPTP, 4G | ||||
| Support automatically switch between WAN/ISP and 4G | |||||
| Support VPN server and VPN client: PPTP, L2TP and OpenVPN | |||||
| Support AP+Client | |||||
| Firewall | Support NAT, URL Filter, MAC Filter and Network Service Filter | ||||
| Support DoS attack protection, SYN flood attack | |||||
| WAN PING,SSH, HTTP Access | |||||
| Other functions | NTP and account setup; Port forwarding,Virtual Server,Watchdog,DMZ,DDNS | ||||
Antenna Specifications
| Item | Specifications | |
Antenna | Frequency Range | 2.4GHz~2.5 GHz |
| Gain | 5dBi | |
| V.S.W.R | ≤1.9 | |
| Impendance | 50Ω | |
| Polarization | Vertical | |
| Radiation | Omni | |
