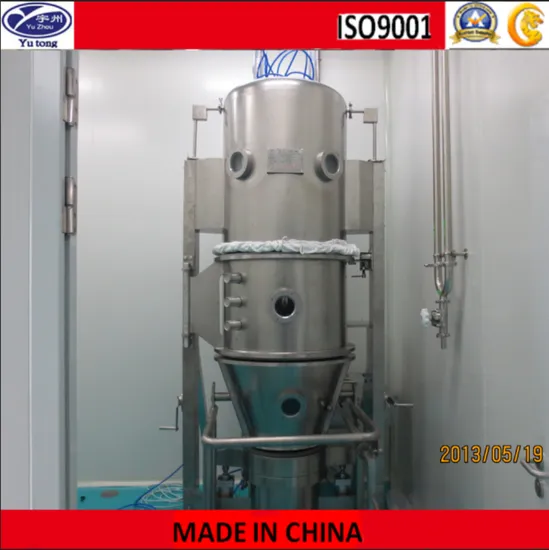

Fluidized Bed Granulating Machine for Powder and Granule

Product Description

Fluidized bed Granulating machine for chemical and pharmaceutical
JIANGSU YUTONG DRYING ENGINERING CO.,LTD
Jiangsu Yutong Drying Engineering Company is a High-New Technology Enterprise in China. With over 16 years of experience, we are able to provide a wide variety of products, including drying machine, grinding machine, granulator, mixing machine, and more. Features like compact structure, high efficiency, and low energy consumption have resulted in our products being increasingly used in the pharmaceutical, chemical, food, light industry, dyes, mineral products, electronics, ceramics, plastics, agricultural products, pesticides, feed, fertilizers, and other industries.
At Yutong, our cooperative relationships with many research institutes and universities enable us to constantly improve product performance and develop new drying machines, mixers and feed machines. As a result of our focus on innovation, we have received many national patents.
Working Principles
The powdery materials is in fluidizing state in the container. It is first heated and mixed by filtered hot air. Then the powder combines with atomizing adhesive solution. After that, the prototype of granule is formed.
The moisture in granules is evaporated, as hot air constantly heats the granules. The adhesive is also solidified in the process of drying. The repeated drying process finally contributes to the microporous spherical granules.
Applications
The fluidized drying granulator can be used to make tables, instant herbal medicine and capsule in pharmaceutical industry, cocoa, coffee, milk powder, fruit granules and flavoring in food industry, and agricultural pesticide, feedstuff, fertilizers, pigments and dyestuff in other industries. It is also suitable for drying of wet powder materials or wet particles.
Features
1. Granules made by our fluidized drying granulator have good dissolvability and fluidity. So there is no dust pollution.
2. It has functions of mixing, drying and granulation.
3. Anti-static electricity filter cloth is adopted to make the fluidized drying granulator safe to use.
4. Pressure bleeder hole is designed for security.
5. It features easy charging and discharging of materials, and it is also easy to clean.
6. Our fluidized drying granulator conforms to the standards of GMP.
Technical Parameters of Fluidized Drying Granulator

Model		FL-3	FL-5	FL-15	FL-30	FL-60	FL-120	FL-200	FL-300	FL-500
Container	Volume (L)	12	22	45	100	220	120	670	1000	1500
	Diameter (mm)	300	400	550	700	1000	1200	1400	1600	1800
Productive Capacity	Min. (kg)	1.5	4	10	15	30	80	100	150	200
	Max. (kg)	4.5	6	20	45	90	160	300	450	750
Fan	Air Volume (m3/h)	1000	1200	1400	1800	3000	4500	6000	7000	8000
	Power (kw)	3	4	5.5	7.5	11	18.5	22	30	45
Stream Consumption (kg/h)		15	23	42	70	141	221	282	366	451
Compressed Air Consumption (m3/h)		0.9	0.9	0.9	0.9	1.0	1.0	1..1	1.5	1.5
Weight of Main Body (kg)		500	700	900	1000	1100	1300	1500	1800	2000
Pressure of Stream (Mpa)		0.3-0.6
Temperature (ºC)		Adjustable from room temperature to 120ºC
Working Time (min)		According the characteristic of material from 45 to 90
Rate of Obtaining Products (%)		>=99
Noise (Db) (A)		Fan is separated with main machine, the noise is less than 75dB
Overall Size (L×W×H) (m)		1.0×0.6 ×2.1	1.2×0.7 ×2.1	1.25×0.9 ×2.5	1.6×1.1 ×2.5	1.85×1.4 ×3	2.2×1.65 ×3.3	2.34×1.7 ×3.8	2.8×2.0 ×4.0	3×2.25 ×4.4

CERTIFICATE
Package:wooden case
service:pre-sale service
Invite your company personnel to our company, communicate with each other on technical requirements,to understand correctly about material features and other specific requirements, comprehensive technical strength and long-term experience,design production meet the requirements, more sophisticated equipment.
sale service
We responsible is to debug the equirement accord with your company requirements of various technical data,operators will go to your company tell u equipment features and operation key points, so that the equipment running in the best condition.
after-sale service
we provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every yearto know more customer needs,like customer operation problems in the process of production equipment,our company will go scene and help u 24 hours (72 hours in other country)
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment.Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.
During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement. (except belongs to the buyer's error)
