Plastic Pet Preform Injection Molding Machine Price

Product Description

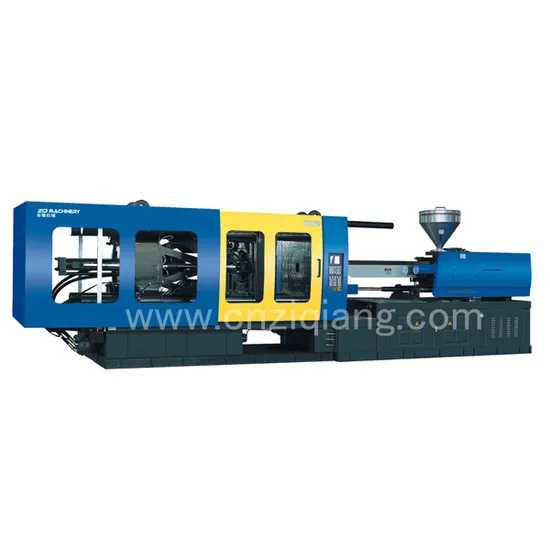

Plastic PET Preform Injection Molding Machine Price
Model: ZQ88-M6, ZQ128-M6, ZQ168-M6, ZQ218-M6,
ZQ268-M6, ZQ320-M6, ZQ400-M6, ZQ500-M6, ZQ680-M6
Clamping Force: 880KN---6800KN
Shot Weight: 1---4Kg
Shot Volume: 129cm3---3808cm3
The technical advantages of injection machine.
Water Saving: No overflowing heating, low oil temperature saves cooling water,
And increases life of sealing elements.
Power Saving: Save Power30%-60%.
High Speed: Increase 20% performance capacity by using variable displacement pump.
Oil Saving: Using high performance filter device to increase life hydraulic oil.
Plastic PET Preform Injection Molding Machine Price
Features
(A) Injection Unit:
Double cylinder cylinder balanced plastic injection
Multi-level pressure and speed for injection
High torsion and five-star motor preplasticizing driven
(B) Hydraulic Unit:
Differential mould clamping control
Doubleration of pressure and flow Optimize combination
Of world famous branded hydraulic parts
(C) Clamping Unit:
Clamping quickly and stoping slowly
Automatic gear adjusting
Storage type automatic lubricating & oiling system
(D) Electric Control:
Controlled by specialied computer for injection machinery
Large LCD screen display---clear
Dynamic display of machine movements---visual
(E) Oil-supplying unit:
The international advanced technology
The automatic oil-supplying device adopted
Standard Equipments:
(1) Double-Cylinder Balance injection System
(2) Multi-stage Pressure&Speed injection Adjustment
(3) Back-pressure Adjustment & Control
(4) Decompression
(5) High Speed mould-Clamping Device
(6) Low Pressure mould Protection
(7) Multiple Ejector Style
(8) Mechanical, Electrical&Hydraulic Safety Device
(9) Centralized Lubrication
(10) Proportional Pressure&Flow Control
(11) All Computer Control System
(12) Data Locking Function/Mould Memory System
(13) Large Screen of LCD
(14) Linear Displacement Transducer Controlling injection, Clamping&Ejection
(15) Electronic&Hydraulic Control Component&Elements of The World Famous Brands
Plastic PET Preform Injection Molding Machine Price,equipment information.

ITEM	ZQ88-M6			ZQ128-M6			ZQ168-M6
	275/88			416/128			619/168
International size rating
INJECTION SYSTEM	A	B	C	A	B	C	A	B	C
Shot volume cm 3	129	163	201	215	263	316	291	349	463
Shot weight g	121	153	189	196	239	287	273	328	435
(PS) oz	4.2	5.4	6.6	6.9	8.4	10.1	9.6	11.5	15.2
Screw diameter mm	32	36	40	38	42	46	42	46	53
Injection pressure Mpa	214	169	137	193	158	132	190	169	120
Screw L: Dratio -----	23:1	20:1	18:1	22:1	20:1	18:1	23:1	20:1	18:1
Screw stroke mm	160			190			200
Screw speed (stepless) r/min	0-215			0-220			0-234
CLAMPING SYSTEM	ZQ88-M6			ZQ128-M6			ZQ168-M6
Clamping force KN	880			1280			1680
Opening stroke mm	320			380			430
Platen size mm×mm	550×550			620×620			700×700
Space between tie bars mm×mm	360×360			410×410			460×460
Max.daylight mm	680			810			930
Mold thickness (Min-Max) mm	150-360			150-430			180-500
Hydraulic ejection stroke mm	100			125			140
Hydraulic ejection force KN	31			42			50
POWER UNIT	ZQ88-M6			ZQ128-M6			ZQ168-M6
Hydraulic system pressure Mpa	16			17.5			17.5
Pump motor KW	9.5			11			15
Heating capticy KW	6.5			8.9			9.8
Number of temp control zones-----	3+nozzle			3+nozzle			3+nozzle

Note: The specifications are subject to change without notice for the further improvement.
