Tsd Series Voltage Stabilizer (TSD-3000VA TSD-5000VA TSD-8000VA TSD-10kVA)

Tsd Series Voltage Stabilizer (TSD-3000VA TSD-5000VA TSD-8000VA TSD-10kVA)

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
TSD-3000VA TSD-5000VA TSD-8000VA TSD-10KVA
Frequency Characteristics
Power Frequency
Usage
SVC,SVR/AVR
Frequency
Intermediate Frequency
Size
Medium
Iron Core Shape
Ring
Power Source
Switching Regulated Power Supply
Application Range
Home,School,Industry and So on
Brand
CNC
Transport Package
Export Standard Carton Box
Specification
CE, ROHS
Trademark
Winston
Origin
China
HS Code
8504
Production Capacity
8000PCS/Month

Product Description


Product Description:
Productions Complation:

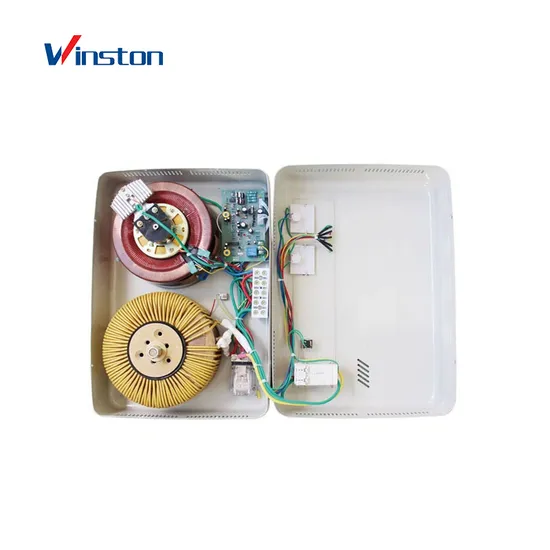

TSD Series servo AC voltage stabilizer mode AC voltage stabilizer is developed on the base of SVC series high accuracy full automatic AC voltage stabilizer.Compared with the original product,this type possesses higher quality and more functions,novel and luxurious apperance,hanging type installation for requiing small area,it forms the control system with linear integrated circuit and logical circuit,and drives the contact type voltage regulator to regulating automatically by controlling the servo motor.It adopts high precision servo voltage stabilizing technology which usually is applied to industry for civilian industry product,to conquer the weakness of instantaneous power failure of traditional switching,and consequently realize high precision and uninterrupted appliances work safely and normally and prolong their service lives effectively.it is really the only ideal protection product of household and imported top grade electrical appliances(power supply of 110V)
Application:
Household appliance,industrial equipment,medical equipment,office equipment,Test equipment,lighting system,communication system,etc
Technique parameter:

Model

TSD-3000VA

TSD-5000VA

TSD-8000VA

TSD-10KVA

Package size(cm)

42×30×19.5

46.3×35.5×23

46.3×35.5×23

50×38.5×25

Current for over-current protection

15A

25A

40A

50A

input voltage

140-260V

140-260V

150-250V

output voltage

220V±3% 110V±4%

Frequency

50-60HZ

Delay time

Long Delay 3-7min,Short Delay 3-7 sec

Voltage regulating speed

>7.5V/sec

Voltage for over voltage Protection

245±5V

Ambient Temperature

-5ºC~+40ºC

Waveform distortion

No additional waveform distortion

Insulating resistance

≥2mΩ

Our Services
1. Prompt reply: Any inquiry or questions would be replied within 24 hours.
2. Quality Product: Manufacture company, each of the products is tested and calibrated.
3. Hospitality: Offer smiling service and your visiting is highly welcomed
4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.
Trade Information
Trade Terms FOB ,CIF ,CFR,EXW,DDP
Payment terms T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery
