Contact Angle Goniometer Tester Factory Direct Sales Water Contact Contact Angle Goniometer Tester Measuring Instruments

Product Description

The contact angle refers to the tangent of the gas-liquid interface made at the intersection of gas, liquid and solid, and the included angle between the tangent on the liquid side and the solid-liquid boundary θ, Contact angle measurement is the main method of surface property detection nowadays.
Sdc-350 integral tilt contact angle measuring instrument is based on the principle of optical imaging. It measures the surface contact angle, wettability, surface tension, surface energy, rolling (sliding angle), forward / backward angle and hysteresis of the sample through image profile analysis. The equipment adopts full-automatic liquid feeding device and automatic integral tilt device, with comprehensive functions, high cost performance and can meet various conventional measurement requirements, At present, it has been widely used in many universities and enterprises.
Product Parameters

Warranty	1 Year
Customized support	OEM, ODM
Model Number	SDC-100
Power	20W
Product name	Contact angle measuring instrument made by Chinese manufacturers
Mainframe weight	11KG
Frequency	50/60HZ
Contact Angle measurement range	0-180°
Dripping accuracy	0.1μL
Maximum sample	120mm*150mm
External dimension	560*196*525mm
Light source	Circular LED

Detailed Photos

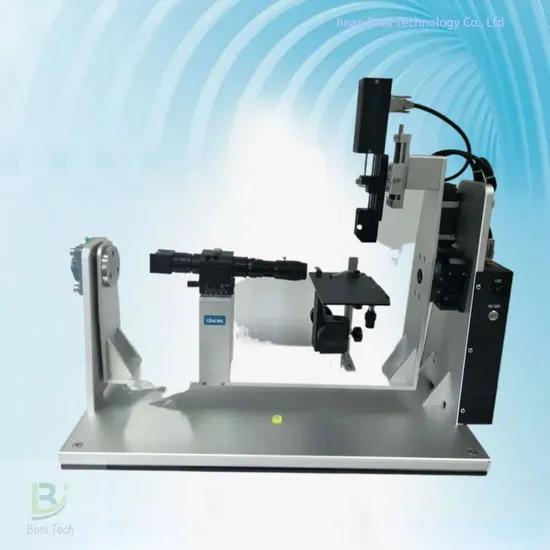

As shown in the figure above, the contact angle measuring instrument is mainly composed of six parts: light source, injection unit, sample table, acquisition system, overall tilt platform and analysis software. The equipment adopts the principle of optical imaging.
The light source adopts dense LED cold light design, with uniform light emission, image cleaning and long service life;
The injection unit adopts a high-precision syringe pump to inject liquid, and is controlled by software with fixed quantity and speed, with stable dripping and high precision;
The sample table adopts a three-dimensional manual fine adjustment platform, which is flexible in operation and accurate in positioning. The sample table can be customized according to the actual sample size;
The acquisition system adopts a black-and-white imported CCD camera, with stable shooting, clear and reliable images. The lens is imported from Germany, with 0.7-4.5 times magnification adjustable, and the imaging is free of distortion;
The overall tilt platform adopts software to control the tilt with high accuracy, with an accuracy of 0.01 °
The analysis software has powerful functions, with one click full-automatic fitting ability, and the most advanced fitting method in the world, which can meet the accurate fitting of various droplet shapes;
Applications
Application
1. Wetting behaviors such as spreading, penetration and absorption of liquid on the solid surface, and static contact angle is measured by drop method;
2. Measurement of advance angle, retreat angle, contact angle lag, rolling angle and dynamic contact angle of the material on the solid surface;
3. Continuous real-time research and process recording of absorbent materials, and analysis of contact angle curve with time;
4. Contact angle measurement of various special materials, such as powder, curved surface, superhydrophobic / superhydrophilic samples;
5. Test the contact angle of the material immersed in the liquid by the adhesion drop method;
6. The surface tension, polarity and dispersion components of various liquids were measured by hanging drop method;
7. Calculate the surface free energy of solid and analyze its polar dispersion component;
8. Analyze the adhesion work of the liquid on the solid surface, and evaluate the uniformity and cleanliness of the solid surface.
