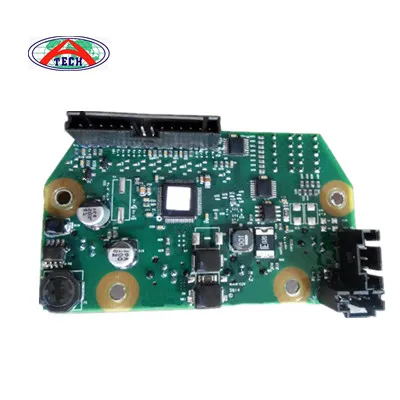

High Quality SMT Assembly PCB Board Manufacturer

High Quality SMT Assembly PCB Board Manufacturer

US$2.00
500-999 Pieces
US$1.80
1,000-1,999 Pieces
US$1.60
2,000+ Pieces

Basic Info.

Model NO.
PCB Assembly
Layers
Multilayer
Base Material
FR-4
Certification
RoHS, ISO
Customized
Customized
Condition
New
Feature
Factory
Type
Customized
Transport Package
Bubble Bag & Carton Box
Specification
25*10*2CM
Trademark
N/A
Origin
China
HS Code
8504901900
Production Capacity
20000PCS/Week

Packaging & Delivery

Package Size
48.00cm * 30.00cm * 20.00cm
Package Gross Weight
5.000kg

Product Description

Products Name: SMT & DIP 6 Layers PCB Assembly
Article Description Capability
Sercive PCB and SMT assembly with one-stop service
Material Laminate materials FR4, high TG FR4, high frequency, alum,
Board cutting Number of layers 1-48 layers
Min.thickness for inner layers 0.003"(0.07mm)
(Cu thickness are excluded)
Standard (0.1-4mm±10%)
Board thickness Min. Single/Double:0.008±0.004"/4layer:0.01±0.008"
8layer:0.01±0.008"
Bow and twist no more than 7/1000
Copper weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Min size 0.0078"(0.2mm)
Drilling Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Color Green,white,black,red,blue…
Solder mask Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min Size 0.006″(0.15mm)
E-test Function Test 100% Functional test
PCBA Testing ,AOI Test,Functional test
Pcb assembly one-stop service electronic manufacxturer service
Certificate ISO9001:2015
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
package QFN,BGA,SSOP,PLCC,LGA
Sub-assembly Plastic,metal,screen

Company Introduction:
PCB PCB A Workshop:
Shipping :
Contact :
Lena Huang
