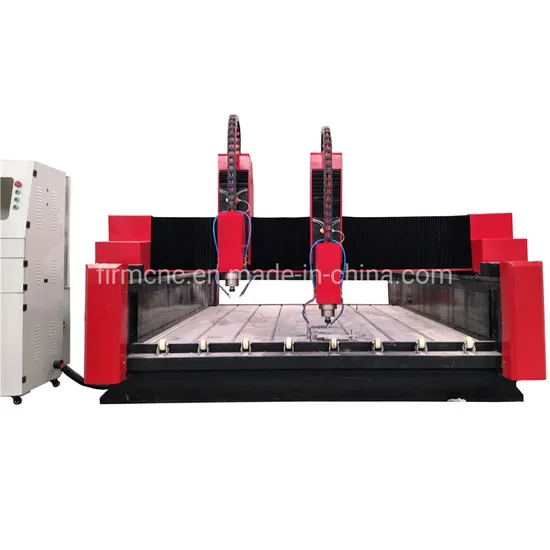

CNC Engraving Machine for Marble Stone Granite

Product Description

China Heavy Duty Wood Engraving Machine CNC Router
Features
1.Lathe bed is of high quality by cast steel, after re-treatment, much stronger and more stable.
2.Powerful stepper motor driver, imported linear guide rails, running smoothly, high accuracy, long time service.
3.High precision pinion and rack transmission, , could engrave 1mm letter clearly.
4.Water cooling spindle (24000rpm), apply to long time processing of wood products.
5.Water cooling knife, when carve metal and stone use.
6.Portal frame:Use aviation industry aluminum, long service time.Some factory choose aluminum tube, the
Cost Is lower, but service time is short.
7.After choose heavy weight, portal frame:Squat sitting structure, when carve metal and stone more steady.
8.Aluminum table +PVC+ sink.
Technical specification

		FIRM-1325	FIRM-1224	FIRM-1530	FIRM-2040
Working area	X axis	1300mm	1200mm	1500mm	2000mm
	Y axis	2500mm	2400mm	3000mm	4000mm
	Z axis	200mm	200mm	200mm	200mm
Process precision	±0.05mm
Reposition precision	±0.05mm
Table structure	Section aluminum(Vacuum suction or bar suction)
X,Y,Z structure	X, Y rack, Z screw
Idle speed	≥32000mm/min
Working speed	≥15000mm/min
Spindle rate	1.5kw/2.2kw/3.5kw/4.5kw
Spindle speed	0-24000rpm/min
Motor type	Stepper/servo
Working voltage	AC380V/50HZ AV220/50HZ
Operating stem	DSP or NC studio system

Application:
3D/2D engraving,Embossment,Line engraving,Cutting,Edge inversing,Drilling on Natural stones,Granites,Artificial stones,Tombstones,Milestones,Ceramic,Glass,etc.
Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
After sale:
1.We would provide English Version working manual.
2.If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.
3.Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
4.If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
5.Could be remote control if needed.
Our Company
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province.We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate
The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3:How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4:How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
