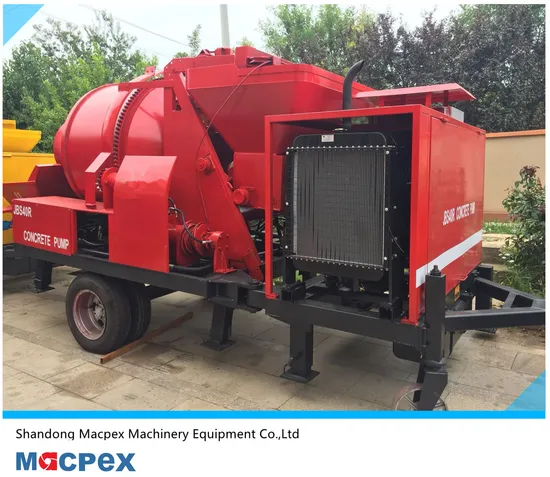

Mobile Concrete Mixer with Pump Wholesale by Diesel Power
| US$20,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MB40
Structure
Steel Welded
Productivity
90m²/h
Feeding Height
450
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Transport Package
Standard Parkage
Specification
HBTS80-16-110
Trademark
MACPEX
Origin
China
HS Code
8413400000
Production Capacity
200
Product Description
JBTS30-10-66R| Items | Unit | Parameters | |
| Whole performance of machine | Max.theo. concrete output | m3/h | 30 |
| Max.concrete throughput | m3/h | 15 | |
| Charging volume | m3 | 0.56 | |
| Discharging volume | m3 | 0.45 | |
| Max.concrete pumping pressure | MPa | 10 | |
| Distribution valve type | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Ф180×1000 | |
| Hopper capacity | L | 400 | |
| Outlet diameter | mm | Ф150 | |
| Power system | Diesel engine model | R4105ZD | |
| Electrical engineering power | kW | 66 | |
| Rotate speed | r/min | 1800 | |
| Winding motor power | kw | Hydraulic motor | |
| Stir the motorPower | kw | ||
| Water pump motor powe | kw | ||
| Hydraulic system | Circuit type | Open circuit | |
| Pumping system pressure | MPa | 32 | |
| Mixing system pressure | MPa | 6-8 | |
| Capacity of oil tank | L | 350 | |
| The biggest transportation is away from vertically (/Level) | m | 90/400 | |
| Other parameters | Max.aggregate diameter | mm | Scree: 30 |
| Inside diameter of delivering pipe | mm | Ф125 | |
| Dimensions:length×width×height | mm | 6000x2300x3150 | |
| Total weight | kg | 5000 | |
