47dBm 5.6-5.7GHz RF PA Signal Jammer Mobile Module 2020 New Design

Product Description

Signal Jammer Mobile Module 50W 5GHz PA 2020 New Design
PRODUCT DESCRIPTION:

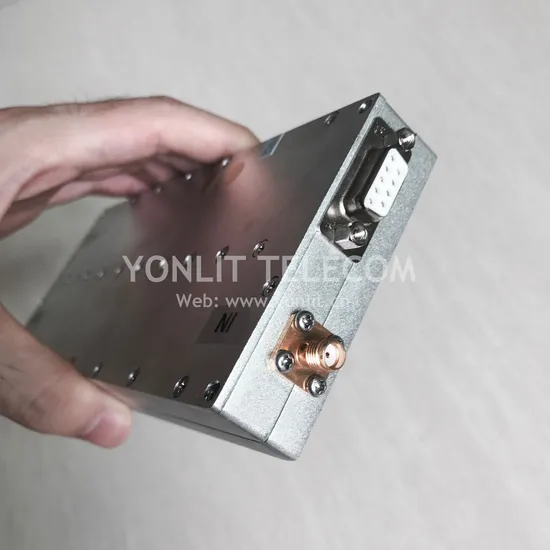

This Power Amplifier module is working for 5.8G C band, model type: PWR-C-200 with aluminum case, it need operating on heatsink.
This product are using GaN technology, power range can be customized from 40-50dBm. PA are equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation. I/O Port is compatible with DB9 serial port.
More function and parameters are avaiable to customized according to actual requirement.
MAIN SPECIFICATION:

Item			Parameters
Frequency Range			5.6-5.7GHz
Gain			>47dB
RF Output Power		50W	47dBm
Input Level			10-15dBm
In-Band Ripple			1dB
Input VSWR			≤1.5
Output VSWR			≤2
Working Voltage		50W	28VDC
Working Current		50W	6A
Harmonics			≥12dBc @Odd harmonics, ≥15dBc @Even harmonics
Spurious			>60dBc @CW
In/Out Impedance			50ohms
RF Input Port			SMA -Female
RF Output Port			SMA -Female or NK
Power Interface			Pull-core capacitor
Working Temperature			-20~65ºC
Efficiency			≥25% @CW
Dimension			About 180x91x26
Protection (Optional)			Shutdown over more 70ºC, Auto-restart less than 50ºCor after 30s
			Shutdown over Output High-VSWR
I/O Port Definition	DB9,Male (Optional)		PIN1: VSWR (VSWR ALarm)
			PIN2: TEMP (Temperature ALarm)
			PIN3: V+ (Forward Power indicator) (0-4V)
			PIN4: Vt (Temperature indicator,-40 to 150, 0.1-1.5V)
			PIN5: GND (Grounding)
			PIN6: V- (Reversed Power indicator) (0-4V)
			PIN7: Vc (Current Indicator) (0-4V)
			PIN8: PTT (Enable PA. Grounding or Hang in air: ON; +5V: OFF)
			PIN9: ALC (0-5V input, 5V: MAX Output Power,0V: Min Output Power)
	Pull-Core Capacitor (Optional)		SWR: VSWR Alarm over High-VSWR (+3V), and PA shutdown
			TEMP: Alarm Over High-Temperature (+5V), and PA shutdown
			GND: Grounding
			Vt: Indicator for Temperature, Vt=0.5V+TC×10mV/ºC;
			V+: Indicator for Forward RF Power (Max:5V)
			PTT: Enable PA, 5V: PA OFF; Hang in air or grounding: PA ON
PS: Items marked with "Optional" are not standard items, if need those functions should info us before production.

PAYMENT TERMS, ORDER INFO & PACKING
We accept T/T and Western Union for payment.
Leadtime within 1 month, subject to actual requirement might have change.
Product will got packed in carton with foam, each unit will have single box for packing.
If need more information, please send us email.
