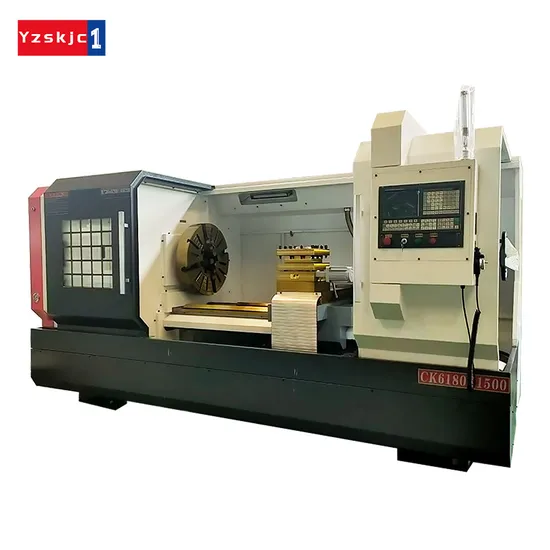

CK6180*1500 CNC LATHE
Product Parameters

Main technical parameters :

Specification	Parameters	Unit	CK6180
Processing range	Max.swing over bed	mm	Φ800
	Max.swing over carriage	mm	Φ450
	Maximum processing length	mm	1000/1500/2000/3000
	Maximum processing diameter	mm	Φ800
	Maximum bar diameter	mm	Φ450
	Gear drive		Helical gear transmission
Spindle	Chuck		630 four jaws
	Spindle head form		D11/A11
	Spindle through hole diameter	mm	Φ105
	Spindle bore taper		1:20
	Spindle series		Manual third gear
	Spindle speed range	r/min	30-140/100-435/220-850
Feed	X/Z axis travel	mm	420/(1000/1500/2000/3000)
	X/Z axis screw diameter × pitch	mm	φ3208/φ5010
	X/Z rapid traverse speed	m/min	4/6
Tool holder	Tool holder type		Electric vertical four-station tool holder
	Number of workstations		4
	Tool specifications: turning/boring	mm	32/40
Tailstock	Tailstock quill dia./travel	mm	Φ100/250
	Tailstock quill taper		MT6
	Tailstock sleeve drive form		Manual
	Tailstock body moving form		Manual
Motor	Spindle motor power	Kw	11
	Spindle motor torque	NM	48
	X/Z motor power	Kw	1.5/2.3
	X/Z motor torque	NM	10/15
	Cooling pump motor power	W	125
Others	Battery capacity	KVA	15
	Saddle layout		Flat bed
	Guide rail form		Hard rail (larger than HRC50)
	Machine tool dimensions: length × width × height	mm	(3400/3900/4400/5400)/1900/2000

CNC lathe execution standards
GB/T16462-1996 "CNC Horizontal Lathe Accuracy Inspection" Standard
JB/TB4368.3-96 CNC horizontal lathe technical conditions
GB5226.1-2002 Machinery Safety Mechanical and Electrical Equipment Part 1 General Technical Conditions

Test items		Factory standard
Positioning accuracy	X-axis travel	0.01
	Z-axis travel	0.015
Repeatability	X-axis travel	0.008
	Z-axis travel	0.012

CNC lathe main configuration and purchased parts

Accessories kit name	Specifications and models	Manufacturer
CNC system	GSK980TB3 system	Guangshu
Main motor	11KW	Shanghai
Spindle bearings	NN3026K/P5W33,6028/P5W33,234432W/P5,NN3032K/P5W33	Harbin
X-axis ball screw	φ32*8	Nanjing Craftsmanship
Z-axis ball screw	Φ50*10	Nanjing Craftsmanship
Chuck	630 four claws	Wafangdian
Tool holder	4-station electric	Wenchang

CNC lathe accessories

NO	Name	Specifications and models	Quantity	Remark
1	Chuck wrench		1 pcs	Packed in accessory box
2	Chuck wrench		1 pcs	Packed in accessory box
3	Packing iron plate		6 pcs	Packed in accessory box
4	Allen wrench	4,5,6,8,	1 pcs each	Packed in accessory box
5	screwdriver	Flathead	1 pcs	Packed in accessory box
6	screwdriver	Phillips	1 pcs	Packed in accessory box
7	open end wrench	14-17	1 pcs	Packed in accessory box

CNC lathe extra information

1	User's Guide	Mechanical part (including certificate of conformity and packing list)	1	Packed in accessory box
2	User's Guide	Electrical parts	1	Packed in accessory box
3	System Operation Manual		1	Packed in accessory box
4	Drive manual		1	Packed in accessory box
5	Inverter manual		1	Packed in accessory box

Main features and function requirements: This machine tool is a CNC machine tool with high speed, high precision and high reliability. The main components such as the bed base, bed body, and headboard are all cast from high-strength materials to ensure the stability of the machine tool for long-term use.
Adopting an integral bed structure, the machine tool has high positional accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining.
High-speed, high-precision and high-rigidity spindle, variable frequency spindle motor. The spindle is assembled in a constant temperature room. After assembly, it undergoes constant temperature running-in for 72 hours. After being put on the machine, it undergoes a continuous 72-hour test run to ensure the reliability of high-precision performance.
Use the 4-station vertical electric tool holder method, which has fast tool changing speed and high positioning accuracy.
Precision ball screws are used for feed in the X and Z directions. The servo motor is directly connected to the screw through a high-torque and low-inertia imported elastic coupling. The screw support adopts a pre-stretched structure, which can eliminate transmission backlash and pre-compensate the machine tool. The influence of thermal deformation on accuracy during long-term operation ensures positioning accuracy and repeated positioning accuracy; it adopts advanced centralized automatic lubrication device, timing and quantitative automatic intermittent lubrication, and the work is stable and reliable.
The machine tool protection adopts a full protection design, which is highly pleasant, unique in appearance, reliable in waterproofing and chip prevention, and easy to maintain.
