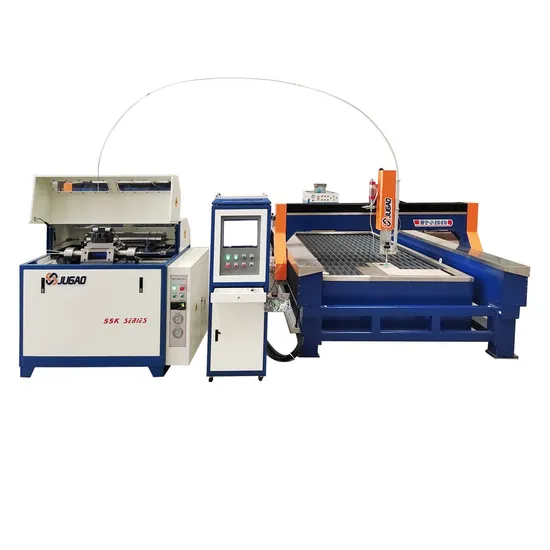

Silica Sand CNC Marble and Ceramic Granite Water Jet Cutting Machine

Silica Sand CNC Marble and Ceramic Granite Water Jet Cutting Machine

US$38,500.00-52,000.00 1 Piece (MOQ)

Basic Info.

Condition
New
Control
Automatic
Application
Paper, Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather, Fabric, Industrial Metal Cutting
Power Source
Electric
Style
Gantry
Type
Three-Axis
Name
Water Jet Cutters
Color
Blue Optional Water Jet Cutters
Brand Name
Jugao
Repeatability (X/Y/Z) (mm)
±0.01
Cutting Positioning
± 0,02 mm
Run Soeed
0 - 9000mm / Min
Servo Motor
Software Supports Hprxd and True Hole
Voltage
380V 220V Optional
Rated Power
50Hz
Dimension(L*W*H)
Customizable
Core Components
PLC, Engine, Gearbox, Motor
Origin
China
Production Capacity
30set/Month

Product Description

Silica Sand CNC Marble And Ceramic Granite Water Jet Cutting Machine Performance characteristics
Monoblock Design Waterjet Cutting Machine, Any material can be cut at one time for any curve (except water cutting, other cutting methods will be limited by the material variety); The heat generated during cutting will be immediately taken away by the high-speed flowing water jet, and no harmful substances will be produced. The material has no thermal effect (cold cutting). After cutting, it does not need or is easy for secondary processing. It is safe, environmentally friendly, fast and efficient. It can realize the cutting of arbitrary curves, convenient, flexible and widely used. Water cutting is a mature cutting process with good applicability.
# The whole processing, the water tank guide surface is formed in one time,and the geometric accuracy of the machine is fully guaranteed, including parallel and ascending.It Will meet the highest requirements,and the equipment will be more stable for long-term use.
# Easy installation,saving assembly time and after-sales service.
# Use absolute servo motor and LED warning light.
# To ensure waterjet accuracy, cutting table frame is treated in overall heat treatment and stress relief treatment, it is never deformed.
# Robust and accurate design for tight tolerance cutting and reliable operation.Fastest cutting speeds and best precision compared to any competitive abrasive water jet in the industry.
Cutting sample display
Technical parameter

Net Cutting Area X = 2.000 mm (6.56')
Y = 1.500 mm (4.92' )
Z = 150 mm (5.9")
Inner Table Working Area 2.000 mm x 1.500 mm
(6.56' x 4.92')
Overall Dimensions 2.200 mm x 1.700 mm
(7.22' x 5.58' )
Rapid Speed 0 - 9000mm / min
(0-29.53' / min)
Weight 2.000 Kg
(5.000 lb)
Positioning Accuracy ± 0,02 mm
(± 0,0008")
Repeatability ± 0,01 mm
(± 0,003")
