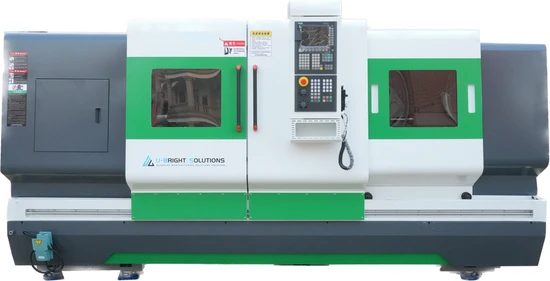

CNC Whirling Machine for Ball Screw Industries
| US$30,000.00-60,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
PH50-2000
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Plywood Case
Specification
4000*1700*2000
Trademark
uright
Origin
Cn
HS Code
8459619000
Production Capacity
400sets/Year
Product Description
| Item | PH46-750 | PH50-1000 | PH50-2000 |
| Max machining length | 500mm | 750mm | 1750mm |
| Spindle RPM | 0-1500 rpm | 0-1200 rpm | 0-1200 rpm |
| Chuck size | 200mm(8") | 250mm(10") | 250mm(10") |
| (can be optional) | (can be optional) | (can be optional) | |
| Indexing accuracy | 0.01° | 0.01° | 0.01° |
| Positioning accuracy | 0.015mm | 0.015mm | 0.015mm |
| Repeated accuracy | 0.01mm | 0.01mm | 0.01mm |
| Whirling head power | 4-3KW(110W2) | 4-4KW(150W2) | |
| Whirling speed | 1000-2000rpm | 500-1000rpm | |
| Helical angle range | ±10° | ±15° | |
| Total power | 15kw | 16kw | 16kw |
| Machine weight | 2600kg | 3000kg | 3200kg |
| Machine size | 2300x1700x2000 | 2700x1800x2000 | 3200x1800x2000 |
| PH80-1500 | PH80-2000 | PH80-3000 | PH80-4000 |
| 1250mm | 1750mm | 2700mm | 3700mm |
| 0-800 rpm | 0-800 rpm | 0-800 rpm | 0-800 rpm |
| 320mm(12") | 320mm(12") | 320mm(12") | 320mm(12") |
| (can be optional) | (can be optional) | (can be optional) | (can be optional) |
| o.o1° | 0.01° | 0.01° | 0.01° |
| 0.015mm | 0.015mm | 0.015mm | 0.015mm |
| 0.01mm | 0.01mm | 0.01mm | 0.01mm |
| 4-5.5KW(175W2) | 4-7.5KW(245W2) | ||
| 400-700rpm | 300-500rpm | ||
| ±15° | | ±20° | |
| 20kw | 22kw | 25kw | 26kw |
| 3800kg | 4400kg | 5000kg | 5000kg |
| 3700x2000x2200 | 4400x2000x2200 | 5200x2000x2200 | 5200x2000x2200 |
| Remarks:The machine will be customzied as per customers' requirements | |||
