Iacm- on Pole Overhead Outdoor Isolation Switch High Voltage Circuit Breaker

Product Description

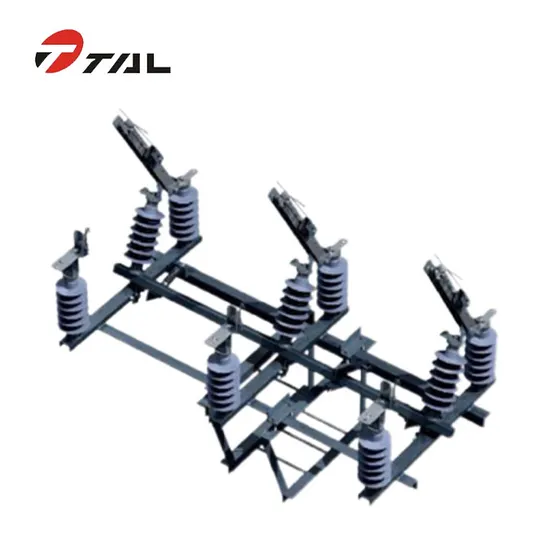

On pole overhead outdoor isolation switch
Model : Outdoor Overhead Disconnector
Product Overview
TAILI Column isolation switch (IACM) is designed for reliable power line switching in medium- and high-voltage systems. Combining simplicity, safety, and durability, this switch is ideal for urban grids, industrial power distribution, and other scenarios requiring manual control.
Key Features:
1. Robust Construction
Made with hot-dip galvanized steel for the chassis and support structures, it resists rust and corrosion, ensuring long-term performance in harsh outdoor environments.
2. Safe Manual Operation
Operated via an insulated handle and mechanical linkage, it requires no external power source. The insulated grip minimizes electrical risks during manual switching.
3. Flexible Customization
The product can be tailored to meet specific voltage levels, current capacities, and structural designs, offering personalized solutions. Customizations for unique environments (e.g., high-altitude areas or high-density power distribution) are supported, with adjustable installation dimensions and connection methods to ensure seamless compatibility with existing grid infrastructure.
4. Advanced Insulation
Equipped with multi-skirt insulators and extended leakage distance (e.g., 1020mm for 24kV models), it prevents arcing and leakage in wet, dusty, or polluted conditions.
5. High Safety Compliance
Meets ISO, IEC, and other international standards. Withstands lightning impulses (e.g., 125kV for 24kV models) and short-circuit currents up to 31.5kA, ensuring reliability during grid faults.
Product Features & Market Adaptability:
Reliable Insulation: Multi-layer composite insulation structure with anti-pollution flashover design ensures safe operation in high-humidity, salt- fog, and dusty environments. Simple Operation: Intuitive manual mechanical mechanism enables quick switching without specialized training. Low Maintenance: Sealed, dust/waterproof design; routine maintenance requires only basic cleaning, with no frequent component replacements needed. Harsh Environment Resilience: Corrosion-resistant materials and wide temperature tolerance range (-40°C to +70°C) support extreme conditions like sandstorms, high altitudes, and freezing/arid climates. Key Markets: Africa (high-temperature droughts and weak grid infrastructure), Southeast Asia (high humidity/salt - fog), the Middle East (sandstorms), and South America (mountainous/rain-prone regions). Standard Specification
(It can be customized according to customer's local demand!)
1.Technical parameter table:
2.Outline and installation size:
3.Packing and delivery:
More Product:
https://tldq5978.en.made-in-china.com
Ex-factory Quality Assurance Routine test:Measurement of winding resistance,Measurement of voltage ratio,Check of vector group,Measurement of impedance voltage and load loss,Measurement of no - load loss and current,Separate-source voltage withstand test,Induced overvoltage withstand test,Dimension checking. Type tests:Lighting impulse test,Temperature rise test. Special tests:The company is accelerating the cultivation and development of productivity, and creating high-level intelligent production. Know More About Our Company
Define-TAILI
Total Solution is how we define "TAILI". From design & customization, engineering, manufacturing, installation, to after - sale service. TAILI provides a Total Solution to our customers, helping and supporting them to gain a competitive advantage in their market.
TAILI, founded in 1988,is one of the largest and most respected manufacturers of MV power distribution products in Wenzhou, China, the "Electric Industry Center" of China. We have factories for manufacturing, research &development, and distribution of products: Transformers, Indoor&outdoor switches, Switchgears, Power substations, and electric components for transformers and switchgears.
Our mission at TAILI is to provide the highest - quality products at the best possible price. And by doing so, to provide an unmatched customer experience and actively establish long-term cooperative relationships with our new and old customers.
Our Advantages
Design Ability:Our design team can combine the needs of customers from East Europe, Africa, South America, the Middle East, Southeast Asia and other regions to customize transformers for different local market demands. As a Chinese manufacturer with more than 25 years' experience, we can produce transformers with European quality at a very competitive price, and perfectly replace imported products from Europe, so that users can use high-quality power products at the lowest cost to gain more advantages in their market.
Efficient Service: With 15 years of experience in the electrical line, we are committed to providing comprehensive technical support, design and customized solutions for our partners. And provide timely service for each step within 24 hours from design,production, logistics installation, etc..,to ensure clients an efficient and smooth operation of the projects! Partners' recognition is the motivation and encouragement for us. We attach importance and pursue giving one-stop service!
Certifications
Attention
1. The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2. The delivery time: Usually it will take about 15-20 days.
3. The standard of package: Usually use strong plywood cases for protection.
4. The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, there are differences between the two when they work well. Except for the long - life factor, copper is better and also has a higher price.
5. The logo: If you have a good quantity, it is absolutely no problem to do OEM.
6. Our market: Our products are popular in Indonesia, the Philippines, Russia, the USA, the Middle East and so on. Some of them are our regular customers and some are in the process of development. We hope you can join us and make mutual benefits from our cooperation.
7. Warranty: within 12 months since BL date.
FAQ
Q1: Are you a manufacture or trading company?
A1: Yes, we are a manufacturer dedicated to designing customized products according to different country standards and producing a wide range of high - quality transformers, switchgears, and power substations. Meanwhile, we can also provide relevant accessories and components with guaranteed quality from our branch factories. We improve the design to make our products more competitive in the market while ensuring better quality for long - term performance.
Q2: How does your factory do regarding quality control and after-sales support?
A2: All the products will be 100% checked and tested before delivery. We also have an inspection team to make videos with customers online or via email. All our products comply with strict tests, and easy maintenance is guaranteed. We also offer online after-sale service in case of any further problems.
Q3: When can I get the price?
A3: Usually we quote within 1 hour after we get your inquiry. For customized products that need special design, we will quote within 12 hours with detailed specifications for confirmation.
Q4: Can you manage the delivery directly to our country with DIP term?
A4: Yes, we have our own Logistics company that helps to find a better solution for delivery and that makes the delivery time more punctual and at a lower cost.
Q5: Can I get guarantee of products after delivery?
A5: Yes, every product is 2-3 years' quality - warranted under customers' correct use of the products.
Q6. Do you have any Certificate?
A6: Yes. Each of our products has CE, 3C and CQC certificates. If you need any other certificates, we can help you to apply for them.
Q7: How can I pay you?
A7: The payment by T/T and L/C is acceptable.
