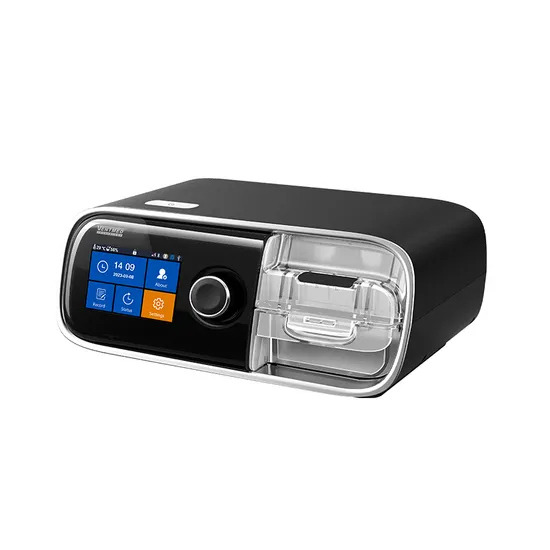

Ventmed Auto Mode Bilevel Machine Osa Copd Therapy Medical Clinic Bipap Device Df-25W-Hm

Product Description

Smarter
Built-in IOT cards-Upload usage data to the cloud platform in real time.-Interpret usage data through the background intelligent AI diagnosis systemSaferSmart alarm safer to use-Mask falling off,apnea,abnormal pressure.-Multiple alarm for tubing abnormalities.-Guarantee patient treatment effects.More comfortableHeated breathing tube more comfortable-Tubing surround heating technology,heating more evenly.-Built-in temperature sensor enables precise adjustment of the mask end.-Temperature plus or minus 10-30ºC optional.More capableBluetooth connection-Connect Ventmed pulse oximeter via Bluetooth.-Pulse and blood gas data can be viewed on the ventilator interface
More convenientIntuitive data display view more convenient-Added a variety of new record, no need to connect to a computer.-Sleep records can be viewed on theventilator interface.-AHI report,sleep record.-Respiratory event count report.
1. Description:
The VentMed Respiratory system is an Auto CPAP device designed for the treatment of adult Obstructive Sleep Apnea (OSA)/Hhypopnea/Snoring.
2. Features:
1. More than 20hr real-time data and more than 1 year used records can be saved.
2. Showing airflow and pressure waves on the screen.
3. TF card for data communication.
4. Combined smart technologies.
5. Contemporary and stylish design for bedroom appeal.
6. EPR(expiratory pressure relief).
7. Auto-Leak Compensation.
8. Auto-Altitude compensation.
9. Alarm for cut down the power.
10. Independent airflow channel.
11. Huge display, 3.5" TFT Screen, show airflow and pressure on the screen.
12. Parameters lock: all the parameters cannot be changed after setting.
3. Packing List1. Host Device with Integrated Humidifier
2. Full Face Mask or Nasal Mask (Optional)
3. 5 Pieces of Filter Cotton
4. Air Tubing
5. Water Tub
6. TF Card
7. Measuring Cup
8. Power Supply Unit
9. Carry Package
10. User Manual
11. Carton Box
4. Specification

Product Model	DF-25W-HM
Work mode	CPAP, AUTO, Auto S, S, T, ST
Expiratory pressure	4cmH2O-25cmH2O
Inspiratory pressure	4cmH2O-25cmH2O
Tubing heating function	Yes
Mobile network	Yes
Data cloud platform	Yes
Pressure rise/fall time	100ms-900ms
Pressure difference	2cmH2O~10cmH2O
I/E ratio	10%-90%
I/E sensitivity	5 levels
Backup rate	5bpm-60bpm, step size is 1bpm, error + 1bpm
Target tidal volume	200ml~1200ml, in steps of 10ml
Ramp time	0-60min
Noise	noise<29dB under 10cmH20 pressure
Data storage	TF card
Screen (inch)	3.5 inch color display
Heating tubing temperature	10ºC-30ºC adjustable, step 1ºC
Humidifier adjustment	heating and humidification, level 1-5 adjustable
Heating module preheating	when preheating is on, in standby state,the device will automaticallyheat according to the setted temperature
Flight mode	when flight mode is on,the device will turn off the mobile network signal transceiver and cannot received or transmit signals
Alarm	mask fall off alarm,asphyxia alarm,pressure abnormality,tubing abnormality
Bluetooth	connectable to pulse oximeter
Weight	1.7KGS
Size	266.8*172.5*118.5mm
Power	100-240V~50/60Hz 1.5A Max

5. Company Introduction
Hunan VentMed Medical Technology Co., Ltd. was established in April 2013, which is integrated of R&D, production and sales. Company's professional R&D team has focused on the exploration and innovation of medical devices for 15 years, dedicated to the diagnosis of sleep disorders and the overall solution of CPAP. The application of new high precision 3D sensors in related fields for the first time improves the comfort of the products and the accuracy of the data. In addition, the cloud platform built by 3G/4G network can realize the real-time monitoring of hospital, doctor and patient. It is the first medical device company to apply cloud platform to sleep monitoring in China.VentMed has obtained multiple independent intelligent property rights.
Company Belief---Design, for a better life!
We are full of faith, persistent pursuit! Provide comfortable, healthy breathing solutions! Overcome various difficulties, explore the science to make life more healthy and more beautiful!
6. Exhibition:
7. Why Choose UsAdvantages we have:
1. Experienced manufacturer of sleeping & breathing products;
2. The professional design team and sales department for your service;
3. ****** golden supplier, factory recognized by CE/ISO13485 and so on;
4. 7/24 service for you, all the question will be dealt within 24 hours;
5. High-quality assurance system and best professional after-sale service.
Benefits you get:
1. Stable Quality---Coming from good materials and technology;
2. Lower Price---Not cheapest but the lowest at the same quality;
3. Long Time Business Partner---Continuous and stable cooperation.
8. Our ServicesWe are professional in sleep & breathing field, deeply understand sleep & breathing device with many years of product development and manufacturing experience.
Except for our VentMed brand CPAP/AUTO CPAP/BiPAP/Sleep Study device, we also provide OEM/ODM service. We can do your private brand products according to your requirement.
--- 2 years warranty!
--- Provide minimum and shortest delivery time!
--- Long-time maintenance service for the product!
--- Offer competitive price, high quality and best service!
--- Your inquiry related to our products or prices will be replied in 24 hours!
