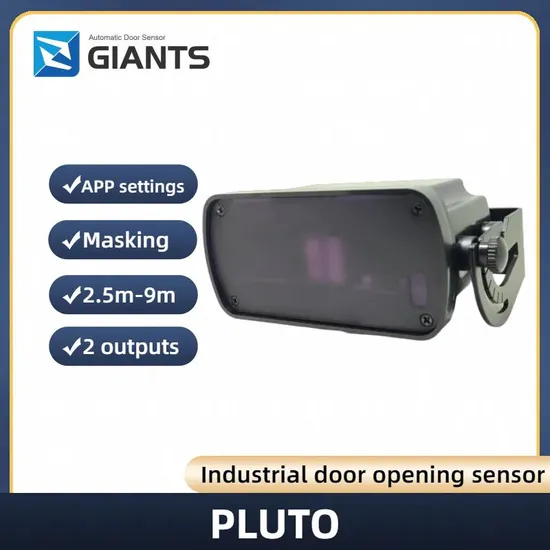

PLUTO
INDUSTRIAL DOOR OPENING SENSOR
Dual-path human-vehicle separation radar
PLUTO is designed for industrial doors,gates and garage doors as an opening sensor, capable of distinguishing between people and vehicles. Batman has a mounting height ranging from 2.5m to 9m, and its cross-traffic masking,digitally adjustable.
It can perfectly replace the loop detector, without the need to dig up the ground, providing both aesthetics and time savings.
Pluto offers two-way individual outputs, ensuring a variety of options for your access entrance
Key Features
People and Vehicle Seperating Detection
PLUTO features dual-path outputs, enabling both human-vehicle separation detection-allowing the door to open only for vehicles-and the ability to open the door fully for vehicles while partially open for pedestrians. This enhances passage efficiency and conserves energy.
PLUTO offering different detetion options:
-Detects vehicles only
-Detects people only
-Detects both people and vehicles.
Cross traffic masking
PLUTO excels in recognizing lateral movements of vehicles or pedestrians, ensuring doors open only when necessary. Its outstanding performance in this aspect sets Pluto apart.
Installation Height (2.5m-9m):
PLUTO has a wide range of mounting heights, from 2.5m to 9m. Achieving human-vehicle separation at extremely low heights is a challenging aspect of radar technology, and in this regard, PLUTO perfectly accomplishes human-vehicle separation
Detection Direction :
3 Options in Direction,
Approaching detection
Leaving detection
Both direction detection
Set by APP or Push button:
PLUTO provides two methods of configuration.It utilizes an APP to configure all parameters, making the setting process effortless. Additionally, physical push buttons are retained. This ensures that the sensor can be tuned in any situation.
With this APP, you could easily configure:
1.Detection object: Vehicle/People/Both
2.Sensitivity:7 levels
3.Field size:9 levels
4.Output hold time:0.2sec to 5 sec.
5.Detection direction:Near/Far/Both directions
6.Cross traffic masking: 9 levels
7.Filter: on or off Wiring
Applications
Application:Gate Application: Cold storage door
Application: Stereo garage door Application: High speed door
Technical Data

Technology	Doppler radar
Transmission frequency	24.125GHz
Transmission power	< 20dBm
Detection height	2.5m~9.0m
Adjust angle	0º~ 180º longitudinal
Detection speed	5cm/s ~ 25km/h
Filed size	3.0m*3.5m@2m height; 6.5m*8.5m @9m height
Temperature	-30ºC to +60ºC
IP class	IP65
Power supply	12-36V AC/DC
Output	Max. voltage 48VAC/DC; Max. current 1A
Cable length	6m
Weight	600g
Housing material	ABS+PC

PLUTO, the accurate and dependable sensor for your industrial door sensing needs!
