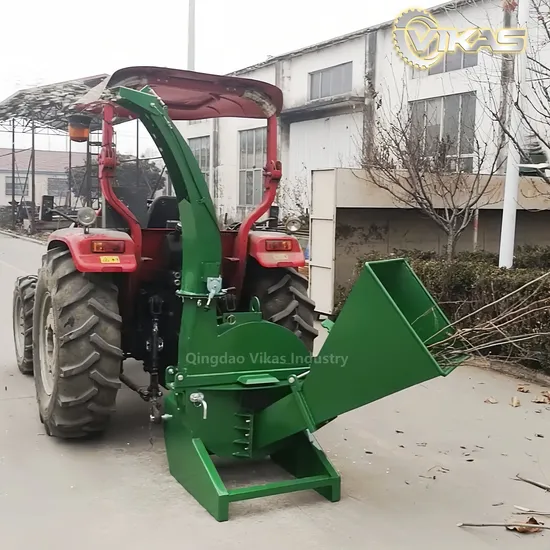

Disc Mobile 18HP-50HP Diesel Engine 8inches Hydraulic ATV Towable Cutting Log Tree Chipping Branch Shredder Machine Bx62r/Bx92r Pto Wood Chipper with CE

Product Description

2024 Tractor PTO Driven Dual Hydraulic Feeding BX42R BX52R BX62R BX72R BX92R BX102R Wood Chipper Product Description
The wood chipper crusher shredder manufactured by Qingdao Vikas Industry is used to cut wood, logs, timbers, branches and bamboo, straw etc. The clients can choose suitable model based on their own requirements. The cutting size of wood chips can be adjustable.
The wood chipper is widely used in organic fertilizer, soil mulch, animal feeds, mushroom planting, paper mills, wood-based panels of factories. It is a very good choice for the production of MDF, and other furniture board industries.
The application of the wood chipper truly realized the concept of returning to nature from nature, protecting natural environment, and meanwhile promoting the development of sustainable economy, and reached WIN-WIN.
Our Advantages
1) Hydraulic system contains oil tank, hydraulic pump, hoses, oil control valve and control handle
2) Hydraulic transmission with double horizontal rollers
3) Matched tractors from 30HP-150HP
4) 4 rotary blades and 1 fixed blade
5) Stop-Forward-Reverse-Stop functions
6) Upper roller height adjustable
7) Feeding system: Double hydraulic motorized horizontal rollers
8) Rotor lock systeem outside chipping house
9) Discharge outlet with 360 degree rotation
10) Safety handles included
11) Safety from hopper folded during transportation Tractor PTO driven type
12) Optional : Hydraulic oil meter and support legs
Product Parameters

Model	BX42R	BX62R	BX92R	BX52R	BX72R/102R
Chipping size	10cm	15cm	20-22cm	12.5cm	17.5/25cm
Rotor disc dia	630mm	740mm	940mm	630mm	740/940mm
Rotor disc thickness	18mm	25mm	32mm	18mm	25/32mm
Rotor disc weight	44kg	86.5kg	171kg	44kg	86.5/170kg
Rated rpm	540-1000	540-1000	540-1000	540-1000	540-1000
Number of blades	4	4	4	4	4 /4
Blades material	65mn/A8	65mn/A8	65mn/A8	65mn/A8	65mn/A8
Blades size (mm)	210*60*9mm	240*60*9mm	320*100*17mm	210*60*9mm	240*60*9mm/320*100*17mm
Hopper opening	520*520mm	620*620mm	620*620mm	830*600mm	830*600mm
Feeding system	Hydraulic feed
Sawdust size	≤6mm	≤6mm	≤9mm	≤6mm	≤6mm/ ≤9mm
Packing size (mm)	1140*810*1920	1220*910*1930	1210*1130*2000	1690*1130*1380	1690*1130*1380mm /1910*1130*1510mm
Machine size (mm)	1560*1800*1800	2100*1680*2100	2000*1980*2520	2000*1300*1900	2100*1300*2100 /2270*1700*2650
Packing weight (kg)	405kg	557kg	783kg	483kg	617kg/851kg
Drive power	Tractor PTO	Tractor PTO	Tractor PTO	Tractor PTO	Tractor PTO
Power required (hp)	35-60HP	60-100HP	75-120HP	35-60HP	60-100HP/70-120HP

Detailed images:
Company Profile
Vikas Industry has an advanced production management system with 4 sets of big power laser cutting machine and
more than 10 sets of different CNC centers, including lathing,drilling, milling, grinding, sawing and other maching tools etc.
Besides these maching centers, we also have a complete set of powder spraying coating line for different colors. All these
can guarantee we can provide clients with a very favourable price and the fast delivery within one month.
As one of leading manufacturers of agriculture and gardening machinery in China, Vikas Industry has more than 20
years of experiences in manufacturing and providing one-stop solutions abd services to meet clients different products
requirements. Vikas also can provide OEM and ODM customized services as well. Welcome clients to contact us freely
and share with us their specific requirements for product color, model, design, preferable engine brands, packages, labels
and other details. We will provide you a satified feedback and considerate services.
Packaging & Shipping
Packing method: by steel frame / wooden frame with stretching films or wood boxes or other seaworthy packing.
We can assist you to adjust the packing box sizes slightly and machines quantity to make the best loading plan to
save the transportation cost for you.Normally 1 pc of 40f container can load 20 sets
Workshop and Maching Center
Certifications
Other series wood chipper recommendation
FAQ
1.Are you factory?
We are a professional manufacturer with 15 years of production experience.
2:What's the MOQ?
A: MOQ is 1set
3:How long is the lead time for sample and mass production? A: Samples will take about 10days,mass production will need 20days.
4: What OEM Customization can you offer? A: Colors
B : Different engines
C: Labels
D: Logo
E: Package
F: Manual books
5: What's your warranty?
A: Normally warranty period is one year (non-artificial damage),we will send you new spare parts to replace by air For free.
6: What other additional services we will offer?
A: Professional advertising videos. We have our own photographers and video
editors to offer you professional customized advertising videos.
7: Do you have ISO quality, environmental and safety management system certificate?
A: Yes, we can provide the certificates.
