Stainless Steel Pipe Plant Facility Equipment One Inch Diameter Pipe Line

Product Description

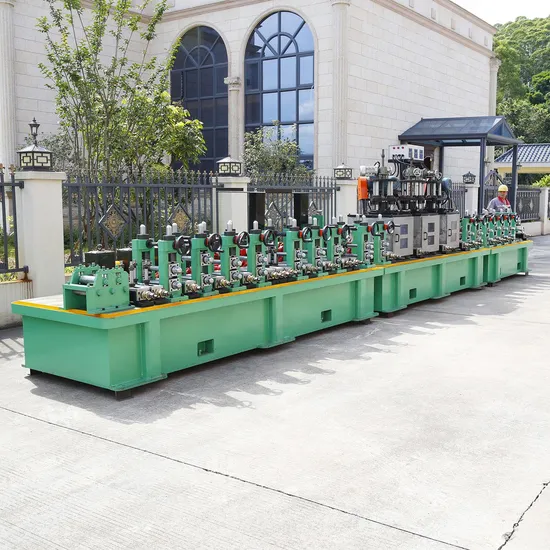

Factory Outlet Decorative/ Industrial SS CR Pipe Making Machine Welded Tube Mill
√ Pipe making with high accuracy, stable performance,
√ High yield, fully automated, simple operation,
√ The service life of up to 20 years, sturdy machine,
√ Continuous production, high efficiency,
√ Less material waste, low production costs.

CUSTOMER-ORIENTED QUALITY-ORIENTED
Factory Outlet Overseas installation
Passed the ISO9001:2008 international standard certification

** We are the manufacturer of pipe making machine and polishing machine since 1999;
** Factory located in Foshan Gaoming, with 40,000+ square meters areas;
** We have professional technical team as well as complete production line can serve you from pre-sales and after sales
** Our machines sells home and abroad, with 10+ years export experience we are the "China Quality Brand".
** We are the only manufacturer that produce almost 95% of the machine by ourself, from machine structure, bearing, shaft, mouldings, different parts even to nuts, which can highest to control the quality.
Product Description

Brand:	YONGJIAN MACHINERY	Product:	YJ-40 Factory Outlet Industrial SS CR Pipe Making Machine Welded Tube Mill
Color:	White/Green/Blue	Voltage:	220/380/415/440V
Useful time:	20 Years	Warranty Time:	1 year, quality assurance

After-Sales Service Provide:

Engineers available to service machinery overseas

APPLICATION
High level precision industrial pipe making machine:
Is used for the manufacture of industrial pipe and advanced products of the professional production and processing equipment. With the maturity of stainless steel pipe technology, our company developed a online internal & external weld leveling equipment and online bright solution annealing equipment can achieve seamless pipe s effect. Pipe products in the home life, industrial production, frontier technology and other fields with a wide range of applications, such as high- level decorative tube, sanitary pipe, heat exchanger, fluid tube health pipe, car exhaust pipe, petrochemical, building materials, steel pipe using, chemical equipment, nuclear energy pipe, application prospects.
Parameters
we can also design and produce according to customer requirements.

Model	Pipe Diameter(mm)	Wall thickness(mm)	Production Capacity(m/min)	Motor power(kw)	Tube tolerance(±mm)	Wheel head(kw)	Straightener	Material
YJ-40	∮12.7-38	0.5-2.5	0.5-15	7.5x2	±0.05	3x3	2	ss,cs,etc
YJ-50	∮25-63.5	0.7-3.0	0.5-5	11x2	±0.05	3x3	2	ss,cs,etc
YJ-60	∮50.8-114	1.0-4.0	0.5-5	15x2	±0.05	3x4	2	ss,cs,etc
YJ-80	∮101.6-168	1.0-5.0	0.5-3	22x2	±0.05	3x5.5	2	ss,cs,etc
YJ-90	∮159-219	1.5-6.0	0.5-3	30x2	±0.05	3x5.5	2	ss,cs,etc
YJ-90large	∮159-219	2.0-8.0	0.5-3	30x2	±0.05	3x5.5	2	ss,cs,etc

Automatic production proce
Uncoiling→Forming Part→Welding Part→Leveling Inside Welding Line→Grinding Part(removing outside burr)→Solid Solution Treatment→Final Sizing→Straightening→Unloading
Uncoiler
Forming and Welding Part
Online internal welded Seam leveling equipment
Grinding Part
Sizing Part
Cutting Machine
Efficiency
1. Adopt to 2 group high frequency motor as driving, its production speed is up to 15m/min.
2. Welding section is separated from forming section, in order to make welded tubes higher quality and more stable
Anti-corrosion
1. The grinding group machine table which easy to erode have installate the stainless steel plate.
2. Corrosion of parts to do protective surface treatment to extend the service life of the machine.
3. Useful time is more than 20 years by the practice.
Automation
1. The grinding group adopted visualization intelligent numerical control system.
2. To achieve intelligent sensor grinding, effectively improve the grinding effect and quality, let the employees away from the dust environment, can effectively protect the physical and mental health of employees.
Packing & Shipping
1. We use steel wire and wooden frame to fix the pipe mill
2. In addition, used shockproof film to protect the main motors.
3. We use the container to deliver goods to our customer. Generally speaking, we start at Foshan port, but we also can start at other port according to customers need.
Intergrated services:
1. Provide customers with a reasonable investment plan, filter the appropriate models recommended to customers.
2. Free equipment drawings, customer plant equipment planning drawings.
3. Provide the base map required for installation free of charge.
4. Provide equipment installation and commissioning until the buyer operates normally.
5. Provide professional technical training, as soon as possible to allow the buyer's operator to master the operation and use of the equipment.
6. Provide and coordinate auxiliary equipment, accessories, and consumables.
7. The warranty period is one year, except man-damage.If you have any question in operation in operating the machines, you can call us or send emails, we will solve the problem for you asap.
Other popular products
Foshan Yuanyongjian Pipe Making Mold&Machinery Co., Ltd. is a professional manufacturer of stainless steel welded pipe molds, welded pipe machinery, high frequency pipe welding machine and stainless steel pipe machine, polishing machine, composite pipe machine, online bright solution annealing equipment and other ancillary equipment. Manufacturer of stainless steel production lines. Advanced production equipment, strong technical force, modern management system The company has the ability to independently design and develop various new products, and the equipment is sold all over the country.
FAQ
Q: Do you had building an independent factory?
A: We have our own factory.Our company is based on the original factory and birth out the professional sales company.
Q: What kind of services can you give us?
A:1. Pre-sale can be targetd to give some constructive comments.
2. Develop a specific plan for your needs.
3.After-sales reference to specific products, different with different service. Refer to the specific product description.
Q: What does the whole metal pipe making machine include?
A: The whole welded pipe production line contains raw material uncoiler, forming and welding mill, pipe cutting machine, pipe unloading table.
Q: Is there any other equipment buyer need to purchase?
A: Buyer need to purchase some spare parts such as bearing, magnet bars for welding, saw blades for cutting, which is necessary in the later production. Buyer also need to purchase eletric wires for connection, water pump for recycling water and material for making machine foundation, etc. We can also provide buyers with everything if buyer want one-stop service.
Q: What is the difference between you and other Chinese suppliers? What is the advantage?
A:1. We are sale enterprise, but we have our own factory. Products quality can be promise.
2. We can feedback the process at any time, making you to stay at home will be able to clear in the heart.
3.We have 20 years technology experience.
4. If conditions permitting, we can provide the appropiate services at any time.
Q: If we provide parameter requirement, can be customized?
A: We provide the corresponding customized services, as long as you provide the appropriate drawings and product requirements can be fine.
Q: How long about your delivery time? Can be delivered on time?
A: Our leading time varies according to order quantity, at usually is 30-45 days (within 10 sets decorative pipe making machine) ; 45-60 days (within 10 sets industrial pipe making machine).
