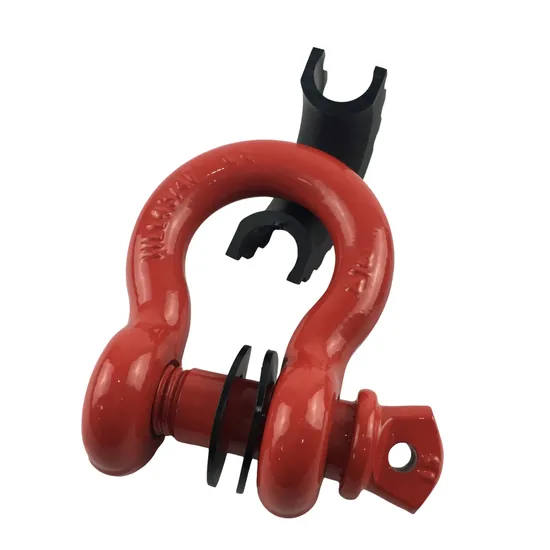

8t Rating Bow Shackle for Offroad 4X4 Recovery

Product Description

Product Name	Screw Pin Dee Shackle
Material	High quality alloy steel/carbon steel/stainless steel
Size	Different size available (1/4"-2 1/1")
Finish	Hot dip galvanized,eletro galvanized,painted,polish
Standard	Federal Specifications RR-C-271D
Feature	*Traceability code, capacity, Brand DESO and WLL embossed
	*Forged quenched and tempered, with alloy pins
	*Proof Load: Tested at 2 times of WLL
	*Fatigue: tested at 1.5 times of WLL
	*Safety factor:6:1
Packing	Gunny bag or carton and pallet or as ustomer requirements.
Delivery Time	10~30 days,based on Qty
Application	Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings

Product Description
The Anchor Shackle's pin threads into the shackle for a tight and secure closure. Each pin contains a through-hole that provides easy seizing with cable ties or wire to prevent against unwanted pin loosening. (Cable ties and wires not included.) Working Load Limit Permanently Shown on every Shackle Forged,Quenched& Tempered with Alloy pins Be sure to follow all posted load limits. Do not use in overhead lifting applications. It is widely used in construction,climbing,electric power,metallurgy,petroleum,machinery,railway, chemical industry,port,mining and other industries

Size	Weight	Dimensions										Working Load
(in)	(kg)	(mm)										(ton)
		A	B	C	D	E	F	G	K	L	M
1/4	0.05	11.9	7.85	6.35	6.35	24.6	15.5	22.4	40.4	4.85	35.1	0.5
5/16	0.08	13.5	9.65	7.85	7.85	29.5	19.1	26.2	48.5	5.6	42.2	0.75
3/8	0.13	16.8	11.2	9.65	9.65	35.8	23.1	31.8	58.5	6.35	51.5	1
7/16	0.2	19.1	12.7	11.2	11.2	41.4	26.9	36.6	67.5	7.85	60.5	1.5
1/2	0.27	20.6	16	12.7	12.7	46	30.2	41.4	77	9.65	68.5	2
5/8	0.57	26.9	19.1	15.7	16	58.5	38.1	51	95.5	11.2	85	3.25
3/4	1.2	31.8	22.4	20.6	19.1	70	46	60.5	115	12.7	101	4.75
7/8	1.43	36.6	25.4	24.6	22.4	81	53	71.5	135	12.7	114	6.5
1	2.15	42.9	28.7	25.4	25.4	93.5	60.5	81	151	14.2	129	8.5
1--1/8	3.06	46	31.8	31.8	28.7	103	68.5	91	172	16	142	9.5
1--1/4	4.11	51.5	35.1	35.1	31.8	115	76	100	191	17.5	156	12
1--3/8	5.28	57	38.1	38.1	35.1	127	84	111	210	19.1	174	13.5
1--1/2	7.23	60.5	41.4	41.1	38.1	137	92	122	230	20.6	187	17
1--3/4	12.1	73	51	54	44.5	162	106	146	279	25.4	231	25
2	19.2	82.5	57	60	51	184	122	172	312	31	263	35
2--1/2	32.5	105	70	66.5	66.5	238	145	203	377	35.1	330	55

Qingdao Luckreal is mainly doing Metallic Products with more than 15 years and we have our own manufacture .Luckreal is an eminent name in the market and has created a reputation as the reliable Manufacturer, Exporter, Importer & Supplier of rigging hardware and steel fabrication.We have been merited.
Raw material from big steel company with mill test certificate , 100 % finish testing and inspection before shipment,Press forging machine 8 lines, including 400 T, 630T, 1000T, 1200 T, 1600 T. Biggest forged products can produce is 35 kgs.
We have a perfect after-sales service department, including the use of products, the transportation path of products...Our Advantages Our advantage, firstly, our products are exported to Asia, Europe, the United States, South America, the Middle East, and Southeast Asia. So we can provide professional import trade services and provide complete and accurate customs clearance documents at once, so that customers can complete import customs clearance smoothly and efficiently. Secondly, we have a professional production and design team that can undertake ODM, OEM, and skilled packaging workers, ensuring timely delivery and superior product quality. Thirdly, our efficient after-sales service team will track the products that have already been sold in a timely manner and response customers' after-sales problems on time . Packaging & Shipping
FAQ1. Can I be your agent?
Yes, welcome to deep cooperation. We have big promotion of L&R brand in the market now. For the details please contact me.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Free for the samples, but you need to pay for the freight.
4. What's your quality guarantee?
We have different kinds of products which can meet different quality standard.
Our QC department will teset products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
5. How about the delivery time?
The delivery time is depend on the products and the quantity. But generally, the delivery time for a container is about one month.
6. What's benefit will you bring?
Your client satisfied on the quality.
