Heavy Duty Drilling Equipment Z3050X16/I Radial Drilling Machine

Product Description

Heavy Duty Drilling Equipment Z3050X16/I Radial Drilling Machine

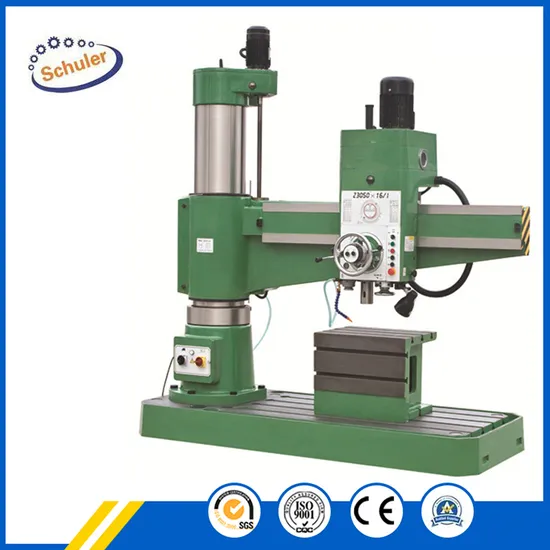

Product picture:
Features:
The radial drilling machine model Z3050, Z3063, Z3080 is a new series with diversified functions of product which has been designed and accomplished referring to the intermational standards (ISO) CE in the recent years. In this machine, hydraulic preselection speed and feed change mechanisms are adopted.
The spindle head, radial arm and columns are clamped by the hydraulic clamping mechanisms, and the forward, reverse, stop (braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has the characteristic features of perfect performance, safe, reliable and easy operation, convenient maintenance, high accuracy, ample rigidity and long service life. It is used for drilling, counter boring, spot facing, reaming, tapping and boring. It is the machine widely used in every department of mechanical machining.
Drilling Machine Technical Parameters:

SPECIFICATIONS:		Unit	Z3050X16
Max. drilling diameter		mm	50
Distance between spindle axis and column		mm	350~1600
Distance between spindle end and working surface of base plate		mm	320~1220
horizontal movement of spindle box		mm	1250
Work table size		mm	630 x 500 x 500
Taper in spindle:			No.5
Spindle travel:		mm	315
Number of Spindle Speeds:			16
Range of Spindle Speeds:		r/min	25-2000
Number of Spindle Speeds:			16
Range of Spindle Feeds:		mm/r	0.04 -3.2
Power of main drive motor:		kw	4
Weight	N.W	kg	3500
	G.W	kg	3850
Overall dimensions(L x W x H)		cm	250 x 107 x 284
Packing dimension(L x W x H)		cm	258X110X 255

Drilling Machine Details Picture:
Radial Drilling Machine In the Workshop:
Drilling Machine Package Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
