138ton Zinc Alloy Hot Chamber Die Casting Machine Fast Injection Automatic

Product Description

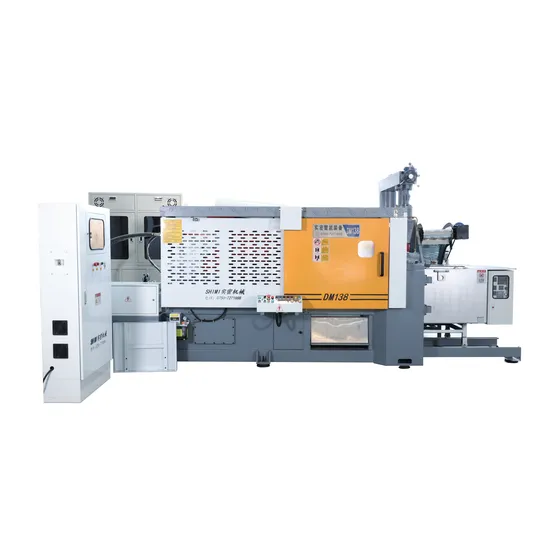

Hot Chamber Die Casting Machine for Making Zinc Zamac Parts 138Ton
Zinc Die Casting Machine DM138Ton Hot Chamber Fast Injection
Features and Configuration
Injection system
An independent high-speed accumulator is adopted, which has sufficient storage capacity to ensure stable injection force.
The slow injection speed can be controlled individually, with sensitive response and smooth action.
The injection action is controlled by a certain speed, with a specific hydraulic system, which is suitable for various product process requirements with high surface requirements.
Wide range of injection speed adjustment.
The maximum air injection speed of high-speed injection is stable, which is the guarantee of producing high-quality castings.
Low hydraulic impact, high repeatability, suitable for the production of high density castings.
Piston energy storage structure improves action response, improves the integrity of the injection system, and reduces oil leakage points.
Multi-injection position lifting, suitable for the production of molds with different structures.
Hydraulic System
Adopt fast differential regeneration clamping oil circuit system, the opening and clamping action runs smoothly and quickly, and improves production efficiency.
Standard configuration of hydraulic core-pulling valve moving pattern plate 1 group.
Use reliable brand hydraulic components (Tokyo, Yuken, etc.).
Electrical control systems
Powerful parameter storage function, which is convenient for future production call, improves production efficiency, and maintains consistent product quality.
The fuselage line is made of oil-resistant and temperature-resistant and covered steel wire protection wires, which are well protected even in harsh environments to ensure normal production.
The unique position selection of rotary blanking hopper can be used by customers to choose a better blanking method according to the plant situation.
Servo drive and single proportional control hydraulic power system
Intelligent dynamic operation, high energy saving rate, clear high pressure throttling, reduce oil temperature.
Servo drive has fast response speed.
Single-proportional control of the hydraulic system, intelligent dynamic operation, clear high-pressure throttling, reduce oil temperature.
Single-proportional control hydraulic system, pressure and speed can be adjusted.
Improve the stability of the whole machine and ensure the product quality.
Flexible and smooth action conversion, reduce the impact of action, and prolong the service life of machinery and molds.
Clamping system
Four large bar guide pillars, using high-tensile steel as raw materials, the surface is hardened by high-frequency heat treatment, and the outer layer is re-plated with hard chrome, which has high wear resistance and prolongs the service life of the machinery.
The three major formwork and machine hinges are made of high-strength ductile iron, and the five-point expansion structure of the toggle connecting rod provides strong clamping force.
The clamping action is divided into multi-level pressure and speed control and low-pressure clamping protection function.
The hydraulic ejection design of the cylinder provides balanced ejection force and reduces the factors of product ejection deformation.
Adopt central electric lubrication system, advanced point-by-point quantitative lubrication. Ensure that the lubrication points near and far are evenly lubricated, and there are liquid level and pressure alarm functions to ensure the good lubrication effect of the machine.
Automatic centralized lubrication system
Central automatic lubrication system, timing lubrication toggle to improve mechanical life and reduce maintenance.

Die Platen Drawing
Product Parameters

ITEM	UNIT	DM138T
Clamp Force	KN	1380
Clamping stroke	MM	350
Ejecting Force	KN	90
Ejection Stroke	MM	85
Mold thickness	MM	170-490
Platen Size (w*h)	MM	660*720
Tie bar spacing(w*h)	MM	440*440
Diameter of die bar	MM	80
Position of shot	MM	0, -80
Force of shot	KN	108
Stroke of shot	MM	150
Stroke far away nozzle	MM	280
Plunger diameter	MM	60/65
Shot Weight/Zn	KG	2.1/2.4
Capacity of crucible/Zn	KG/Zn	480
Motor Power	KW	15
System working pressure	MPa	13
Consumption of Furnace (Oil)	KW/H	4.8
Consumption of Furnace (Electric)	KW	30
Oil Tank Volume	L	300
Shot nozzle heating power	KW	2.5
Size of Machine	MM	4850*1600*2240
Weight of Machine	KG	5800

Products Application
ShiMi Hot Chamber Machines are widely used to sanitary ware, clothing, bags, sport equipment, hardware jewelry, Electrical and electronic, Children's toys, fishing, home appliances, aerospace and many other hardware products.
Automation Production Line of Zinc Alloy Hot Chamber Die Casting Machines

Company Profile
Guangdong Shimi Intelligent Equipment Co., Ltd is a professional manufacturing enterprise engaged in research and development, manufacturing, sales and export of cold chamber, hot chamber, and vertical die casting machines, Founded in 2009, the company has been relying on a professional R&D team. Combining advanced die-casting machine production and manufacturing processes at home and abroad.ShiMi Has independently researched and developed hundreds of reliable products with high performance and high stability. ShiMi company has achieved rapid development. And it has invested a new production base in Jiangmen, Guangdong in 2022,Covering an area of 23000 square meters.
Packaging & Shipping

After Sales Service
To save our customer's cost, we provide full technical support and online guidance free of charge, and answer questions related to operation and maintenance. If customer needs our technician go to your factory for machine installation and commissioning and training, our customer should be responsible for the round-trip air-tickets, visa, personal safety, local accommodation and transportation and the travel subsidy on this technician.
Our Advantages
For the zinc zipper industry giants SBS and 3F , and well-known enterprises such as Wooshi and CMZ ,Shimi have provided over 3000 specialized die casting machines.
From raw materials,Machining,welding,assembly,commissioning to final inspection,ShiMi company has a complete and scientific production and inspection system.In terms of machining,We have imported processing equipment that meets industry standards with high automation and high precision.And advanced processing equipment such as CNC internal and external cylindrical grinding machines together with mature and perfect processing technology, standardized operating procedures, and scientifically optimized fixtures and jigs,Which ensure the accuracy requirements of the machined parts.
