Tony Brand Biomass Sawdust Pellet Machine Wood Pellet Machine Rice Husk Pellet Mill

Product Description

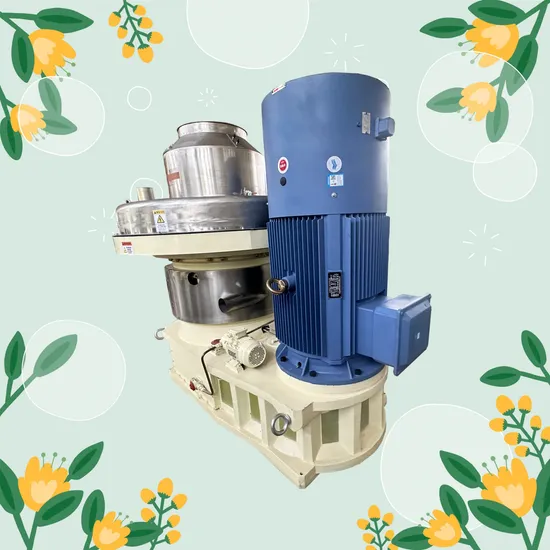

TONY Brand Biomass Sawdust Pellet Machine Wood Pellet Machine
TONY wood biomass pellet machine is a new biomass fuel production machinery by using crushed sawdust . Compared with the old machine, it obsorbed the essence of horizontal ring die and flat-die Pellet Mill Machine, solved the insufficient pressure, die crack problems of horizontal ring die pellet machine, and overcame the small capacity, high failure rate of flat die wood pellet making machine.
Technical Datas of Biomass Wood Pellet Machine

Model	Power(KW)	Capacity(T)	Weight(T)	Size(mm)
TYJ551-III	90	1.5	5.5	2100*1300*2000
TYJ551-III	110	1.5-2	5.8	2100*1300*2000
TYJ551-III	132	2-2.5	6	2250*1400*2150
TYJ760-III	160	2.5-3	9	2500*1600*2400
TYJ860-III	220	3-4	13.5	2700*1700*2500

Main Features
1) Automatic lubrication system for the rollers and spindles which can reach the machines run 20 hours without resting.High
tempreture/pressure,and low temporeture/pressure warning and automatic lubrication.
-----Other suppliers did not have this system,they have to lubricate each working time for about 8hours.
2) Big gear Transmission for easy operation and lower maintenance.Two big gears,each weight is more than 1.3ton.
-----Other suppliers all use the reducer transmission,which is easy to break,and higher maintenance.
3) 4 rollers working, increasing press rate and capacity.
-----Other suppliers all use the 2 rollers.
4) Double layers ring die type, longer working lifetime.
Spare Parts for wood pellet making machine
Double-layers Ring Die
All kinds of pellet machine only have 1 die(ring die).Material: alloy, stainless steelLife time: 3000-4000hours1.The professional heat treatment processing technology can make its hardness above HRC62.2.Vertical Ring die, feeding vertically.3.Double-lay die, dual use. When one side is damaged, turn over and use the other side.4.The compression ratio can be custom made
Rollers1.Number of rollers:2 pieces2.Die fixed, rollers running, materials centrifugal and evenly distributed around.3.Structure:roller shell and bearing4.Working life of rollers:1500-2000 hours
Spindle1.Our main shaft is forged.2.no air insde the main shaft while being forged3.hard to be broken while high-speed running
Self-lubrication System1.Lubricating rollers to make the pellet press machine continuously run for 24 hours(using lubricating grease).
2.It also has the warning function when high pressure/temperature or low pressure/temperature appear.
Requirements for raw materials
Size:Less than 5 mm
All the raw materials must be crushed into sawdust before going
to wood pellet machine.If not, you may need a wood chipper, wood crusher.
Moisture:10-15%
Better for pelletizing high quality pellets, Final Pellets For burning
Ø6mm/8mm: household stove burning;
Ø8mm-18mm: Industrial using
Energy Level: 5kwh/kg, Compared to Oil: 1 lty oil = 2kg wood pellets
Customer Case
TONY Customer's all over the world
Company Introduction
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
FAQ
1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China. You can fly to Jinan airport and then we will pick you up(40
minutes by car) . All our clients are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE.
If you are interested in our wood pellet production machine,please send us inquiry freely. Before quotation we need to know:1. What's the capacity you plan to produce?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content of your raw materials?
5. What's the final pellet size do you want?
