Factory Direct Crusher Complete Set of Equipment for All Kinds of Raw Materials

Product Description

Product Description
Detailed Photos

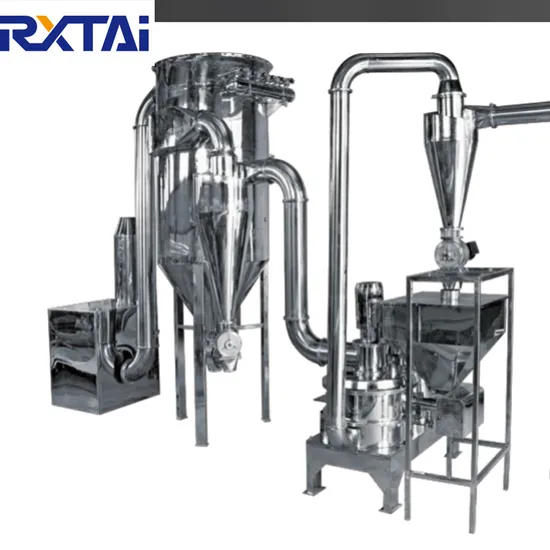

The material is put into the coarse powder hopper and enters the coarse powder machine through the feed capstan (controlled by the frequency converter) . After the coarse powder, the material is sucked into the cavity of the ultra-micro host machine under the negative pressure for crushing. The finished product after crushing is brought into the cyclone separator under the negative pressure, and the finer material enters the pulse dust collector, the clean air after being filtered by the dust collector is discharged through the air outlet of the fan. The whole set of equipment is working under the condition of airtight negative pressure so as to achieve clean workshop standards.

The ultrafine grinding machine consists of feeding System, grinding System, and grading System, and the grinding and grading of materials are completed in the same chamber.
The feeding system consists of a reducer (frequency converter), feeding screw, and gravity impurity remover. The reducer is directly connected to the feeding screw, and the speed of the screw is controlled by a frequency converter to regulate the supply of materials. Gravity impurity remover removes large particles and heavy metal objects from materials.

This machine is composed of coarse pulverizer and ultra-fine pulverizer. It is suitable for herbal medicine (root, stem, leaf) and herbal extract.
Product Parameters

Product Name	Micronizer Grinding Machine
Trademark	RXT
Power	75KW
Capacity	500-1000KG
Type	Impact Crusher
Origin	China
Drive	Electric
Cutter Material	Hard Alloy

Company Profile
Qingdao Ruixintai Machinery Technology Co., Ltd. is located in the beautiful coastal city of Qingdao, China. The company is a comprehensive manufacturing enterprise integrating technical research and development, production, sales, and after-sales service, specializing in the production of high-performance ultrafine pulverizers and related mechanical equipment. As a specialized manufacturer in the powder technology field, Ruixintai Machinery has established a strong reputation and position in the industry through years of technical accumulation and production advantages, backed by advanced proprietary domestic technology.
Our Advantages
FAQ
1. How can I know your quality?
Our company is famuous in our industry. We have more than 10 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
