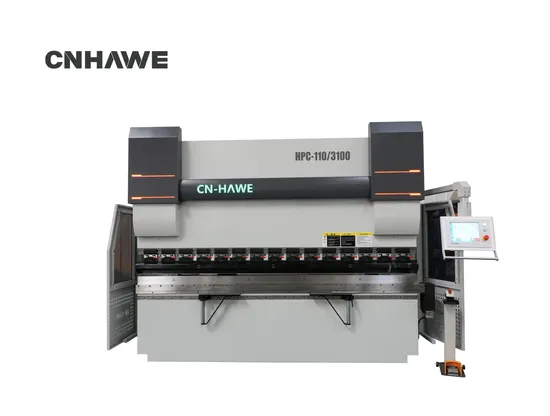

Cnhawe Euro Standard CNC Press Brake Hydraulic Sheet Metal Bending Machine 110tn 3100mm

Product Description

Product Description
HPC EconomiAc CNC Press Brake
Press brakes are an important equipment used for sheet metal processing. It bends and deforms the sheet metal into a preset shape and angle by applying pressure. The core components of press brakes include a workbench, a mold, and a power system. The workbench is used to support the sheet, the mold is designed according to the shape to be processed, and the power system provides the necessary pressure and motion control to ensure that the sheet can be accurately bent. The bending accuracy and stability of press brakes directly affect the quality of processed parts, so its design and manufacturing process requirements are high.
After more than a decade of iterative updates, CNHAWE's electro-hydraulic servo control technology has reached a new level. Looking at the entire industry, the deep integration of this technology with press brakes has created a new era and continues to drive the development of the sheet metal fabricating industry.Product Parameters

Model	Bending Force	Bending Length (A)	Oil Tank	Approaching Speed	Progress Rate	Return Speed	Column Distance (B)	Throat Depth (C)	Slider Travel (D)	Open Height (E)	Weight	Dimensions
Unit	KN	mm	L	mm/s	mm/s	mm/s	mm	mm	mm	mm	Ton	L*W*H (mm)
HPC-65/2500	650	2500	200	240	20	240	2150	350	180	450	4.14	2710*1400*2400
HPC-110/3100	1100	3100	230	220	14	180	2600	410	220	490	7	3260*1540*2610
HPC-110/4000	1100	4000	230	220	14	180	3300	410	220	490	8.1	4060*1540*2610
HPC-135/4000	1350	4000	230	220	14	180	3300	410	220	490	8.3	4060*1540*2610
HPC-160/3100	1600	3100	230	200	16	180	2600	410	220	490	8.6	3270*1550*2700
HPC-160/4000	1600	4000	230	200	16	180	3300	410	220	490	9.9	4070*1550*2700
HPC-250/3100	2500	3100	230	140	12	160	2600	410	220	490	11.24	3280*1930*2740
HPC-250/4000	2500	4000	230	140	12	160	3300	410	220	490	12.8	4080*1930*2740

Detailed Photos
CNC Controller
By using manual quick clamps, we can make the upper punch tools on our press brake be easily and quickly replaced. Saving time and improving work efficiency.Main Servo Motor
Servo motors have become the dominant technology in the field of industrial automation. It achieves high dynamic performance and improves machine production efficiency through low energy consumption, becoming the preferred choice for many enterprises. Compared to traditional motors, using servo motors can save up to 35% of energy, helping customers significantly improve efficiency and reduce operating costs in the production process.In addition, we also provide high-efficiency energy-saving motors from Siemens in Germany to meet customers' regular production needs. The efficiency of these motors is much higher than that of standard motors, significantly improving work efficiency. They adopt advanced technology and design to ensure stable and reliable performance under various working conditions. Oil Pump
CNHAWE's oil pump uses high-strength cast iron material, which makes the pump more stable and reliable during operation, and can withstand high pressure and load. Its unique internal design effectively improves the efficiency and performance of the oil pump through precise mechanical structure and optimized process flow. The noise reduction function is a major highlight of this oil pump, which can reduce the generation of noise during operation and provide users with a quieter working environment. In addition, the oil pump also has the characteristic of low sensitivity to oil pollution, which means that it can work normally in oil environments containing impurities and is not easily affected by pollution, greatly extending its service life.Ball Screw & Guide
Our equipment is equipped with ball screws and linear guide rails, guaranteeing seamless and trustworthy performance on operation. The cooperation with well-known brands from Japan and Taiwan, China has ensured the stability of the motion control of our press brake.
Servo Hydraulic System
In a CNC press brake, a complete servo hydraulic system includes key components such as motor, oil pump, filter elements, valve group, hydraulic cylinders, and oil tank. We have chosen HAWE, a well-known German manufacturer, as our core partner. Their high-performance and low failure rate products provide a solid foundation for our system. In addition, our hydraulic control system adopts an electro-hydraulic servo synchronization design, which achieves extremely small intervals between hydraulic cylinders, thereby enhancing the ability to resist eccentric loads, ensuring high-precision synchronization, and demonstrating excellent power density ratios, all of which are achieved at a lower cost.FAQ
Q1: How to get an accurate quotation from us?
A1: Please provide us with detailed information on the material, maximum thickness, and maximum width.
Q2: Can you provide OEM service?
A1: Yes, we can. Your design is accepted and your logo can be used on the machine.
Q3: How much is the shipping cost from China to your country?
A3: We can send the machine to your port or door address by sea or air. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient, and on-time delivery.
Q4: How to operate this machine?
A4: Video line from our factory or we send you the video directly.
Q5: Do you provide teaching and training?
A5: Training in supplier factory.
