Hot Sale New Designc Waste Plastic Crusher and Washing Machine

Product Description

Product Overview
Product Overview

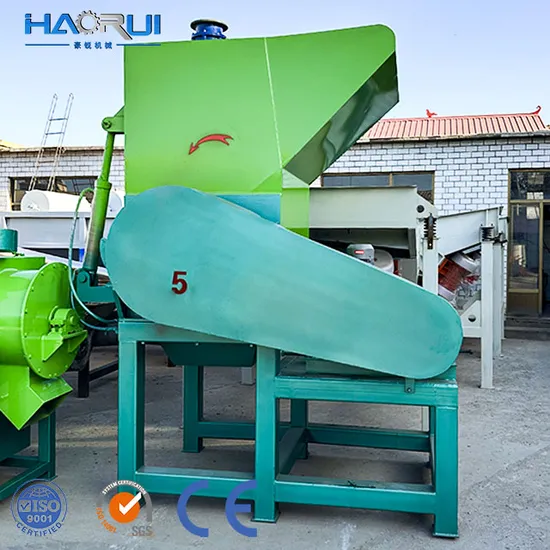

Waste Plastic Crusher Crushing Machine for PET Bottle Recycling

PET PP PE PVC PC ABS plastic cleaning machine Scrap plastic crusher
Use: To crush plastic raw materials into sheets

The whole line comes out as clean bottles
Product Specification
Product Specification

Model	Motor Power	Rotating blades	Fixed blades	Rotating speed	Cover Method
600Type	22kw	3pcs	2pcs	630RPM	Motor rise
800Type	37kw	6pcs	4pcs	630RPM	Hydraulic
1000Type	55kw	6pcs	4pcs	630RPM	Hydraulic
1200Type	75kw	12pcs	4pcs	630RPM	Hydraulic
1600Type	110kw	16pcs	4pcs	630RPM	Hydraulic

Different needs and different choices, we can meet
600type 800type 1000type
1200type 1500type 1600type
Details Images
Details Images
Enough thickness to be stronger

The number of rotating blades:6pcs,The number of fixed blades: 4pcs
Bearing:HRB bearing
All the production process is completed independently by our factory
1. Crush the plastic materials with water feeding to reduce wear
2. Motor power: 55KW
3. The cover opening method:Driven by motor
4. The rotation speed of rotating blades:630RPM
5. The cover opening motor:5KW
6. Screw strength:12.9
7. With forced feeding devices
Packaging & Shipping
Packaging&Shipping
Ensure fast transportation without damage
Company Profile
Company ProfileBaoding Haorui Machinery Manufacturing Co.,ltd was established in 1992,is a professional manufacturer and exporter that is concerned with the design,development and production of PET bottle crushing and washing machine, PP PE HDPE LDPE plastic crushing and washing machine, pelletizing machine .There are over 100 technicians in our workshops which covers 20000 square meters. Over 28 years of plastic recycling machines production experience ,enable us to be TOP3 plastic recycling machine factory in China. Our own R&D team make our machine design unique, OEM and ODM service are also welcome. Our main products include bale opener, label remover, plastic crusher, floating tank, screw feeder, high-speed friction washer , hot / cold washer, dewatering machine, pipe dryer and so on.We insist on the principle of "quality is first" and inspect the machine after producing " which make our market more popular in Domestic and over 40 sets of PET bottle washing line(four 6000kg/h capacity in Nigeria ,Ghana etc), PP PE HDPE LDPE washing line ,pelletizing machine were installed in Middle East,Africa,South America,South East, South Asia and so on
Factory

successful case

our advantages
FAQ
FAQ
Q: How often are the Crusher blades sharpened?A: After continuous working at 30-40hours, the blades have to be sharpenedQ: How long does it take for changing blades-Remove and install blades?A: Depending on the worker skilled or not. Normally 2-3hoursQ: How about the rate for removing the labels by Label remover?A: Compressed bottle: more than 96% Un-compressed bottle: more than 98%Q:What's the temperature of steam washer ?A: Usually 80-90ºC ( If the temperature is over 100ºC, the Flake will be roll.so the best temperature is 80-90ºC)Q: What's the moisture after Horizontal dewatering machine?A: About 1.8%. Adopt Swedeen bearing, with bearing layer on the surface of screw bladesfor longer working life.Q: How often are the Crusher blades sharpened?A: After continuous working at 30-40hours, the blades have to be sharpenedQ: How long does it take for changing blades-Remove and install blades?A: Depending on the worker skilled or not. Normally 2-3hours
