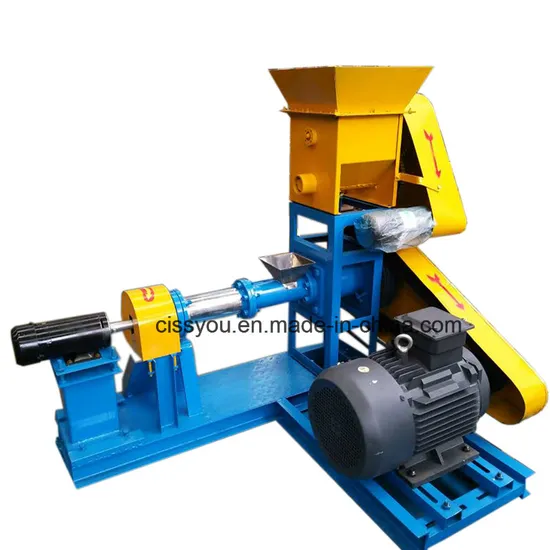

Poultry Floating Fish Shrimp Pet Food Feed Pellet Granulator Machine

Product Description

Poultry Floating Fish Shrimp Pet Food Feed Pellet Machine
Advantages: 1,We will provide 5 sets molds and one whole set of spare wear for you free of charge.
2,Guarantee time is 1.5 years.
3,Tell me the animal you want to feed,the capacity per hour,the material you have,I will provide the least price.
4.CE certification with our machines.
5.I am always here for you.
6.We have the full production line,click me to get more.
Structure :
1.Three motors: Main motor + feeding motor + cutting motor
2.Working principle: Put the material into feeding device. The material will be extruded and expanded by the screw shaft with high pressure and temperature to make the material fully cooked and sterilized. Then the expanded material will be formed into different shapes through different molds.
3.We will send sets of molds, spare parts( sleeve, extruding part, cutter, etc,) and tools for free.
Brief introduction:
1. Aquatic feed pellet for fish, tilapia, tilapia fish, shrimp, crab, etc. Both floating and sinking feed pellets. The floating time can be adjusted by the different puffing degree. 2. Pet food pellet for pets like dog, pet bird, 3. Other animals feed pellet, like frog, fox, rabbit, etc. 4. Poultry animals feed pellet, like chicken food, goose feed, sheep feed, etc. Raw material:
Wheat meal, maize powder, soybean meal, cottonseed meal, fish meal, bone meal, corn meal, meat meal, etc.
Moisture of raw material:20%-25%
Oil content: ≤10%
Starch content: ≥30%
Raw material type: powder
Final pellet photo as follows:

Technical information :

Model	WSJY-40	WSJY- 50	WSJY-60	WSJY-70	WSJY-80	WSJY-90	WSJY-120	WSJY-135	WSJY-160	WSJY-200
Capacity --- kg/h	30-40	60-80	120-150	180-250	300-350		400-450		500-700		800-1000		1200-1500		1800-2000
	Pelleting Diameter--- mm		1-8		1-8		1 -10		1-10		1 -10		1 -10		1-10		1 -12		1-12		1-12
	Motor Power--- kw		5		7.5		15		18.5		22		32		55		75		90		132
	Cutting Power--- w		400		400		400		400		1100		1500		2200		2200		2200		3000
	Screw Rod Diameter-- mm		40		50		60		70		80		90		120		135		160		200
	Cooking degree		>95%		>95%		>95%		>95%		>95%		>95%		>95%		>95%		>95%		>95%
	Size(m)		1.4*1.03*1.1		1.45*1.08*1.25		1.46*1.14*1.25		1.6*1.4*1.35		1.6*1.4*1.35		1.8*1.45*1.35		2.1*1.45*1.35		2.55*2.05*1.65		2.9*2.65*1.8		3*2.85*1.9
	Weight(kg)		260		350		355		580		700		950		1700		1900		3600		4300

Packing photo: It is export wooden cases packing generally. We can also pack as customer requirement.
