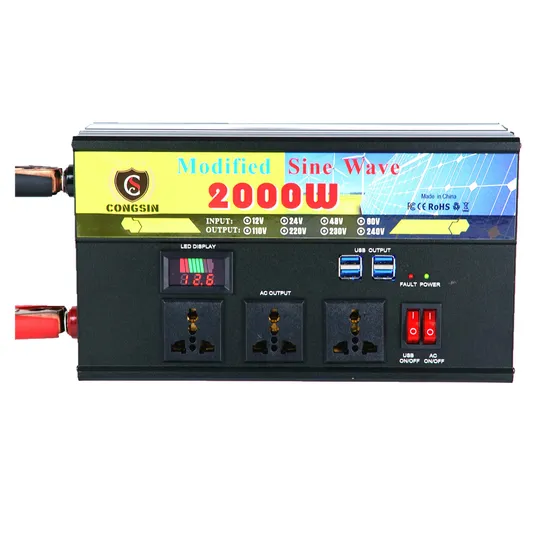

New Arrival 2000W power inverter dc 12v to ac 220v big capability modified sine wave inverter with three AC output sockets
Basic Info.
Model NO.
CXBIG-2000W
Phase
Single
Output Power
2000W
Certification
CE, ISO9001
Brand
CONGSIN
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Square Wave Inverter
product name
DC AC power supply inverter
use
home car power inverter
output waveform
motified sine wave
input voltage
12V/24V/48V
output voltage
110V/220V/230V/240V
peak load power rate
4000W
output frequency
50Hz/60Hz
max power efficiency
95%
high voltage cut off level
15V
low voltage cut off level
10V
Display
LED display
USB ports
2.1A 5V
Socket
Three universal sockets
Cooling
Cooling fan
Product weight
2.68kg
Transport Package
Box
Specification
285*105*160MM
Trademark
CONGSIN
Origin
Guangzhoou, China
HS Code
8504403090
Production Capacity
30000PCS/Month
Packaging & Delivery
Package Size
64.00cm * 41.50cm * 46.50cm
Package Gross Weight
17.400kg
Product Description
2000W power inverter dc 12v to ac 220v big capability modified sine wave solar inverter with three AC output socketsBasic information:
Model NO.: CXBIG-2000W
Certification: CE, FCC, RoHS
Grid Type: Off Grid Inverter
Type: DC/AC Inverters
Warranty: 1 Year
Multi-Protection: Yes
HS Code: 8504403090
Output Power:2000W
Output Type: Single
Color:black
Origin: CHINA
Display: LED battery voltage display
USB ports: 4 USB
Socket: three universal sockets
| Model | CXBIG-2000W |
| max continuous power | 2000W |
| No load current draw | <0.5A, <1.OA |
| Input DC Voltage | 12V/24V/48V |
| Output Voltage | 110V/220V/230V/240V |
| Output frequency | 50Hz/60Hz |
| Max Outer Temperater | 65ºC |
| Max Power Efficiency | 95% |
| High Voltage Cut Off Level | 15V |
| Low Voltage Cut Off Level | 10V |
| Overload and Short-circuit Protection | Yes |
| Size | 285*105*160MM |
| N.W | 2.68kg |
| G.W | 3.68kg |
Main Feature :
1.suitable for nominal power home appliances equipments,such as phone, computer, lamop, camera, TV, shaver, CD, fan and so on.
2.By the vector control to achieve high start-up power and steady low-speed power easily and afford you the best drive unit. Operate home or office electrical products from a vehicle or boat. Supplies AC 220V power from a 12V outlet or battery.
3. Pure sine wave output waveform: Clean power for sensitive loads.
4. Low total harmonic distortion: Below 5%
5. Stable working performance: Even in the situation of under voltage or over voltage, the inverter could endure 10% voltage fluctuation until it shutdowns.
6. Cooling fan with internal temperature sensor will turn on automatically when the inverters becomes warm and turn off after the temperature dropped.
7. LED indicator on the front panel shows the working and error state.
8. Digital displays indicate battery voltage.
