Tyre Bead Wire Tire Steel Wire with Copper Coating for High Tensile Strength Applications

Product Description

Product Description
Bead wire is the steel wire made of high carbon steel with a surface plated with copper or bronze. It has high strength, good toughness, excellent fatigue performance and good linearity. It has high adhesion to rubber and is mainly used in tires. As the reinforcing skeleton material, it is widely used in car tires, light truck tires, heavy truck tires, engineering machinery tires and aircraft tires.
Product usage and specificationSemi-steel radial tires mainly use bead wire specifications: 0.95mmHT 1.20mmHT 1.295mmHT 2.All-steel radial tires mainly use bead wire specifications: 1.55mmHT 1.65mm 3. Bias tire engineering tire mainly uses bead wire specifications: 0.96mm 0.98mm 1.00mm 4. Bicycle electromobile motorcycle tires mainly use bead wire specifications: 0.96 mm 5.PE Steel skeleton reinforced tubes mainly use bead wire specifications 0.60mm 0.80mm 1.0-2.2mm

Product Parameters

Diameter (mm)	NT		HT		Torsion number	elongation at break	Yield ratio
	Tensile Strength(Mpa)	Breaking force(N)	Tensile Strength(Mpa)	Breaking force (N)	(number /360°)	(%)
0.89	≥1900	≥1180	≥2150	≥1340	≥50	≥5	≥85
0.96	≥1850	≥1340	≥2100	≥1490	≥50	≥5	≥85
1.00	≥1850	≥1450	≥2080	≥1630	≥22	≥5	≥85
1.20	≥1800	≥2035	≥2050	≥2320	≥22	≥5	≥85
1.30	≥1790	≥2375	≥2050	≥2720	≥22	≥5	≥85
1.55	≥1780	≥3360	≥2015	≥3800	≥20	≥5	≥85
1.65	≥1780	≥3805	|	|	≥20	≥5	≥85
1.83	≥1770	≥4650	≥5270	≥5270	≥16	≥5	≥85
2.00	≥1680	≥5275	≥5810	≥5810	≥16	≥5	≥85

Notice: executive standard GB/T 14450-2016
The specification and performance can be customized according to the need.
Certifications
Packaging & Shipping

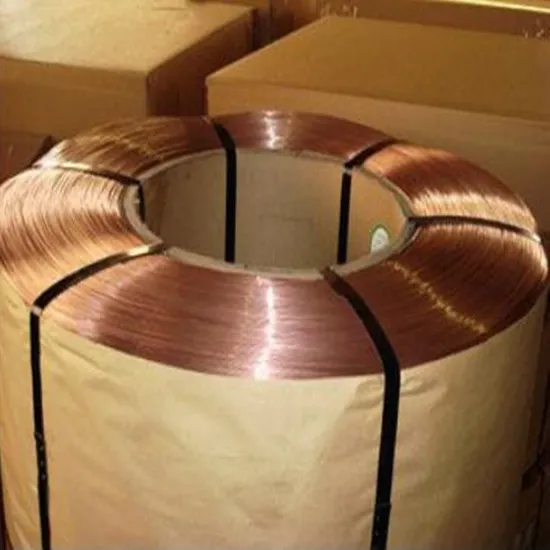

The bead wire pack with the paper coil, each roll from 350kgs to 450kgs , and three coils in one carton,then with pallet, pallet size always to be 80cm*80cm*100cm.we can also accept the custom packaging , ship by small container, each container load about 21 pallets, total weight below 26tons.
