500*250mm 1020ahr High Precision Articifical Manual High Speed up and Down Handwheel Feed Hydraulic Surface Grinder Grinding Machine
| US$9,000.00-11,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
1020AHR
Type
Surface Grinding Machine
Processing Object
Planar Mill
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Condition
New
Table Dimensions
500X250
Table Speed
5-25
Mechanical Height
1775
Occupied Area
2400X1500
Gross Weight
1650
Transport Package
Customizable
Specification
Customizable
Trademark
TRANSTAR
Origin
China
Product Description

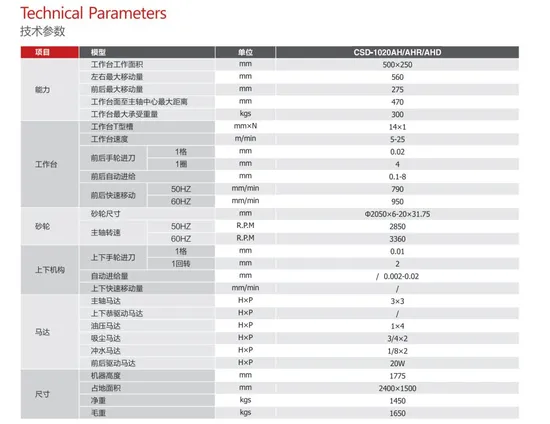

Product DescriptionPRODUCT SPECIFICATIONS
| Mountings | Specifications | Unit | CSD-1020AH/ AHR/ AHD | |
| Ability | Table Dimensions | mm | 500×250 | |
| Maximum forward and backward movement | mm | 560 | ||
| Maximum left-right movement | mm | 275 | ||
| Distance between spindle center and work surface | mm | 470 | ||
| Maximum bearing weight of working table | kgs | 300 | ||
| Work Table | Table T-slots | mm×N | 14×1 | |
| Table speed | m/min | 5-25 | ||
| Front and rear handwheel feed | a check | mm | 0.02 | |
| a round | mm | 4 | ||
| Auto-supplying from front to back | mm | 0.1-8 | ||
| High speed moving from frong toback | 50HZ | m/min | 790 | |
| 60HZ | m/min | 950 | ||
| Grinding Wheel | Grinding Wheel Size | mm | Φ205×6-20×31.75 | |
| Speed of mainshaft | 50HZ | R.P.M | 2850 | |
| 60HZ | R.P.M | 3360 | ||
| Upper and lower mechanism | Up& down handwheel feed | a check | mm | 0.01 |
| a turing round | mm | 2 | ||
| Auto-supplying volumn | mm | / 0.002-0.02 | ||
| High-speed mouing dimension from up to down | mm/min | / | ||
| Motor | Spindle motor | H×P | 3×3 | |
| Drive motor up and down | H×P | / | ||
| Drive motor up and down | H×P | 1×4 | ||
| Vacuum motor | H×P | 3/4×2 | ||
| Dust catching motor | H×P | 1/8×2 | ||
| Back and front driving motor | H×P | 20W | ||
| Machine Size | Mechanical height | mm | 1775 | |
| Occupied area | mm | 2400×1500 | ||
| Net weight | kgs | 1450 | ||
| Gross Weight | kgs | 1650 | ||
Products Details: The Transtar High Precision Manual Grinder Machine is a premier offering from Dongguan TranStar Machinery Co., Ltd. Designed for ultimate precision and reliability, this machine is perfect for a variety of grinding applications. It boasts advanced features and an ergonomic design to ensure seamless operation and exceptional results every time. Whether you are in the automotive, aerospace, or general manufacturing industry, this grinder machine delivers unparalleled performance and durability. Elevate your production capabilities with the Transtar High Precision Manual Grinder Machine, where innovation meets excellence.
