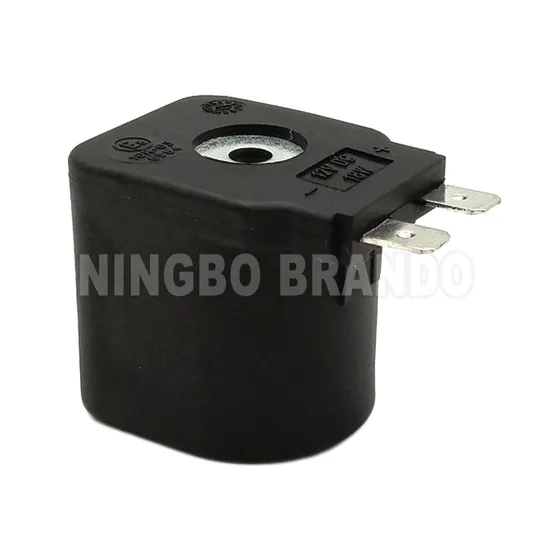

12VDC 11W 17W Solenoid Coil For CNG Pressure Reducer Regulator LPG Gas Shut Off Solenoid Valve Multivalve

Product Description

Product DescriptionA solenoid valve is an electrically controlled valve that shuts off or allows fluid flow from one point to the other. The valve consists of 3 main components: a solenoid coil, a solenoid armature and a valve body.
Solenoid Coil consists of several turns of enameled wire, taking a cylindrical shape and hollow from the inside. When current flows through the coil, a corresponding magnetic field is produced.
Solenoid Armature is the pressure-tight internal part of a solenoid valve. We produces its components from round material in brass, as well as from stainless steel using diverse alloys. The selection of the sealing material (elastomer) is always based on the operating and ambient conditions of the application.
Technical Data

BRANDO Model	BB12036513
Voltage	12VDC
Power	11W, 17W
Other voltage and power can be customized
Connection Type	2 Pins (6.3x0.8mm)
Insulation Class	F, H

More LPG, CNG Solenoid Coils
Production Process
Payment & Delivery
FAQ How to choose a matching solenoid coil?
1. Voltage: The first thing to consider is the type and size of the power supply voltage of the solenoid valve, which is DC or AC.2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
