Customized/in Stock Wssx Electric Contact Industrial Bimetal Thermometer

Product Description

Product Description
I.Name: Industry bimetal thermometer temperature gauge
Shanghai CIXI adopts advanced technology and manufacturing process. Our products have been export to USA, Canada, Germany, Vietnam,Thailand,South Africa Singapore, India, Russia, Pakistan more than 20 countries with high reputation
II.General Introduction

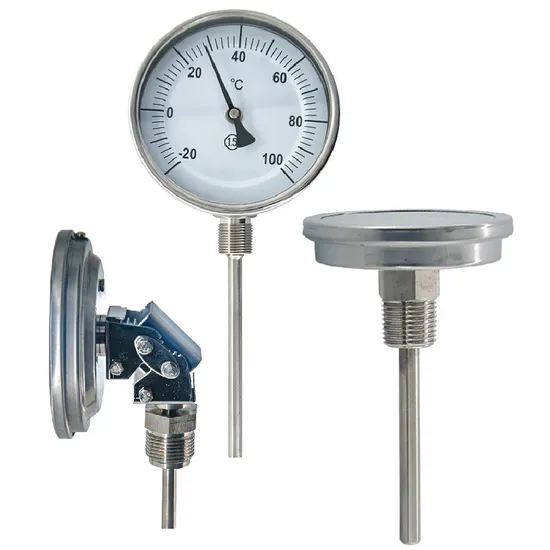

SS304 bimetal heavy industry thermometer is a temperature-measuring instrument in which the differential thermal expansion of thin, dissimilar metals, bonded together into a narrow strip and coiled into the shape of a helix or spiral, is used to actuate a pointer. Also known as differential thermometer.
III.Detail Specification:
1.Industry bimetal oven thermometer temperature gauge
2.Dial Size: 100mm
3.Temperature:0-100C
4.Thread:1/2NPT
5.Stem Length:100mm
6.Stem Diameter:6.35mm
7.We can also make according to client's requirements.
IV: More Specification for Choice

Product Name	WSS411/401 bimetallic thermometer stainless steel anti-corrosion and shockproof boiler high-temperature industrial thermometer
Material	Stainless Steel
Measuring range	-50-600 (ºC)
Structural style	Axial/radial type
Accuracy level	+/-1.5% full scale standard; +/-1% full Scale Available
Surface diameter	100 (mm)
Response time	≤ 40S
Working pressure	6MPa
Connection	1/4"NPT standard on 2" dial, fixed centre back and bottom 1/2"NPT standard on 3", 4", 5" and 6" available, fixed centre back, bottom and adjustable angle.

Guide Selection:
Dial Size?
Temperature Range?
Back or Bottom or Adjustable Type?
What is the thread size?
Display C&F or only C? Product Show
