Proficient Waste Tyre Crusher Machine for Scrap Tyre Recycling

Product Description

Company Profile
Qingdao Longyuan Baihong Machinery Equipment Co., Ltd. has taken the responsibility of recycling waste resources and creating a green ecological environment. With the continuous technological breakthroughs, our company, cooperating with Qingdao University of Science and Technology,established a laboratory and developed waste tire pyrolysis carbon black equipment, which realized the fourth generation of Industrial Intelligence. Therefore,the factory transformed heavy manual operations into automated production.Our company mainly produces automatic fully continuous recycling pyrolysis plant of waste tires, waste rubber, waste plastics, and oil sludge.
Product Description Tire crusher, integrating modern technology and environmental protection concept, cuts and crushes the waste tires of cars, motorcycles and trucks based on comprehensive working principle. It is often used in waste tire granulation, grinding and other recycling systems.
Through the intelligent control system, the crusher can automatically adjust the crushing strength and speed according to the different types and hardness of the tire. From this point, it ensures the efficiency and particle uniformity, reduces energy consumption and improves the processing capacity. At the same time, the closed crushing and dust removal system effectively control dust, ensuring the cleanliness of the workshop environment and improving the health of workers.
Rubber Shredder Parameter:

Name		610 type	710 type	810 type
No	Component	Technical	Technical	Technical
1	Helical roller	610mm *1000mm	710mm*1000mm	810mm*1200mm
2	Straight tooth roller	510mm*1000mm	610mm*1000mm	710mm*1200mm
3	20 mesh Rubber powder	1000-1200kg	1200-1500kg	1500-2000kg
4	Dimension	5400mm*2000mm*1400mm	6200mm*2260mm*1700mm	6400mm*2700mm*2400mm
5	Motor power	Y2-325M2-6 -200-220kw	Y2-355m2-6 -250kw-280kw	Y2-400m2-8 -315kw
Auxiliary machine
No	Component	Total power	Total power	Total power
1	main vibrating screen	29kw	31kw	48kw
2	secondary vibrating screen
3	9000 magnetic separator
4	rubber powder feeding belt
5	anti-tying belt machine
6	12000 magnetic separator
7	rubber powder collector

Steel Wire Removal Process
1	Tire Steel Wire Drawing Machine	Remove the tire bead wire
Rubber Block Process
2	Shredder with rolling screen	Shredding the tire into ≤50mm rubber pieces
Wire separation
3	Rubber Grinder	Peel the capillary wire in the tire and obtain 1-5mm rubber particles
Rubber Granulating Process
4	Rubber Granulating Machine	Grind the rubber to 15-200 mesh as required
Dust Removal Process
5	Magnetic Separator	Remove wire from rubber particles
6	Fiber separator	Separation of fibers from tire particles
7	Dust removal equipment	Dust removal

Product Parameters

Double-shaft shredder	Crush waste tires of various sizes, using high alloy steel imported from Europe as cutting tools, with a detachable and interchangeable double row knife structure design to improve tool utilization rate.
Steel wire separator	Cut the rubber block through moving knife and fixed knife,Qualified rubber particles and steel wires are discharged through the sieve.
Conveyor	The material surface of the rack has undergone rust removal treatment.
Magnetic separator	The type of magnetic separator is permanent magnet self dumping type, which can effectively screen the separated steel wire.
Vibrating screen	Separate the steel wire from the large rubber block/steel wire through vibration.
Electronic control system	The main control cabinet and control platform are independent of each other, and the design of touch screen and button control mode enables operation,The control interface is more user-friendly and easy to operate.

Production Process Diagram:
Features:
Product Details:
Raw Material:
Final Products:
Strategic Partners:
Patents:
Certifications

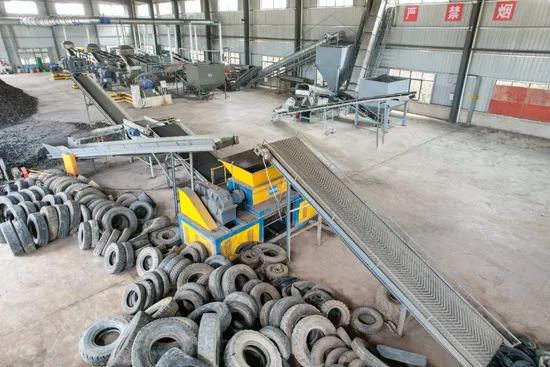

Workshop:
Packaging & Shipping
Our Customers:
We are committed to providing high-quality tire shredders and excellent customer service. Contact us to learn more about our products and how they can benefit your tire recycling or waste management operations !
FAQQ: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Our Service?
Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation, commissioning.
