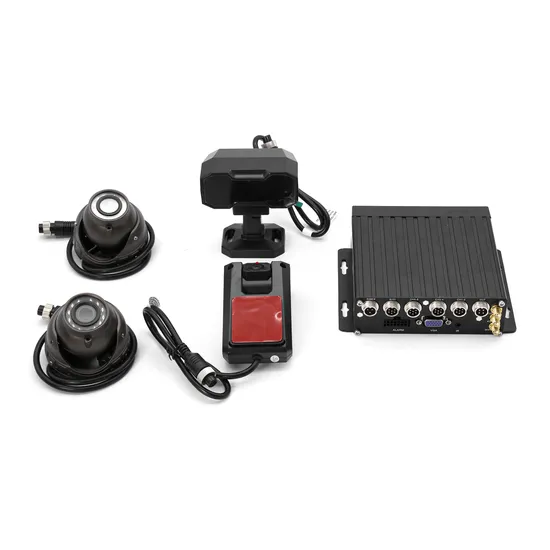

4 Channel Adas DMS Vehicle Fleet Cam Car 4CH 1080P WiFi GPS 4G SD Mdvr Mobile DVR System Kit Vehicle DVR The School Bus

Product Description

Details Images

Item	Parameter	Description
System	Operational language	Chinese. English, Others (customizable)
	Operation interface	Graphical menu operation interface (OSD menu)
	Password security	Two-level management of user password and administrator password
Video	Video input	4/8 video input
	Video output	There are two video output modes of VGA and aviation head interface
	Video resolution	Support 1080P. 720P, D1, HD1, CIF, etc
	Video loop recording	Support SD card automatic loop recording and loop overlay (auto default)
	Video mode	Support boot recording, timing recording, alarm (trigger) recording
	Image compression	H264/H265
Display	Preview features	Supports single and multi-view
	OSD overlay display	Channel name, time, recording status, resolution, license plate, GPS information, etc
Alarm	IO alarm	4 IO alarm inputs, with alarm linkage function
Communication interface	RS232 interface	1CH RS232, expandable card machine, oil sensor, LED advertising screen, etc
	RS485 interface	1-way 485 interface, expandable gimbal
AI capabilities (Extensible)	Passenger counting	1 door passenger counting
		2 doors passenger counting
		3 doors passenger counting
		4 doors passenger counting
	DMS	Fatigue (closed eyes, hatcher) detection alarm
		Occlusion camera detection alarm
		Receiving and receiving phone calls to detect alarms
		Face loss detection alarm
		Distraction detection alarm
		Smoking detection alarm
	ADAS	Occlusion camera detection alarm
		Lane departure detection alarm
		Pedestrian detection warning
		Vehicle distance detection and warning
	BSD	Left blind zone detection alarm
		Right blind zone detection alarm
Platform	Remote monitoring platform	Real-time monitoring, monitoring intercom, playback, video, high-definition screenshots, GPS data, alarm data upload
others	power consumption	≤10W
	Operating temperature	-20ºC to +70ºC
	Operating humidity	20% to 80%
	size	128 (D)* 133(W)* 42(H) mm
	net weight	Bare metal: 0.532G
	Power input	DC +10V - +36V

Accessory MDVR Function Company Information Certificate CE ISO001 RoHS FCC


FAQ 1. how can we guarantee quality? Always a pre-production sample before mass production;
Always final Inspection before shipment; 2. What is about your warranty? For MDVRS, the warranty is 12 month, for Cameras,the warranty is 24 month. But actually we give Lifetime maintenance services,
over the warranty period, only need to pay the cost of replacement parts , other maintenance services are free. 3. what services can we provide? Accepted Delivery Terms: EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian 4.How about your quality control? We have a very strict quality inspection step , 100% full Quality inspection 5. Does your MDVR System has CE FEE E-Mark? Yes, our MDVR System has CE FEE E-Mark Certifications. Title goes here. Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. Title goes here. Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
