Electronic Yarn Twist Tester Suitable for Various Yarns

Product Description

Product Description

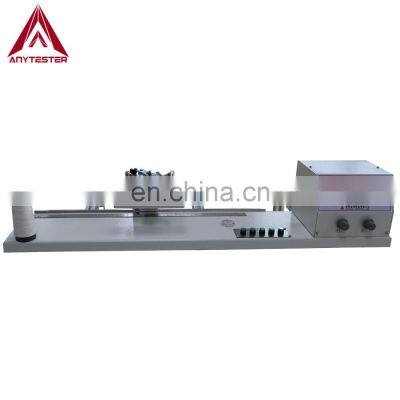

Product DescriptionAT068D Electronic Yarn Twist Tester is used to determine yarn twist of single yarn, plied yarns and all the other yarns by conventional or untwist/re-twist method.Details & FeaturesModelAT068DTwist range1~1999twistTest times100timesLinear density1~499.9texTest length10~500mm, settableTest methodF0: Direct counting methodF1: Untwist/re-twist method (method A) F2: Untwist/re-twist method (method B) F3: Three times of untwist/re-twist methodTest speed100~1900r/min, stepless adjustableJog speed100~1900r/min, stepless adjustablePower supplyAC220V±10% 50HzRated power20wDimensions890mm×290mm×215mmWeight11kgSpecification★ Large touch screen control, easy to operate★ It is suitable for various yarns★ Adjustable pre-tension according to yarn category★ Adopt micro-computer control, with automatic data processing, display and printout, accurate, stable and reliable★ It can also be connected to computer to achieve more analysis function★ With imported dedicated clock circuit, the system time can be printout on the report★ Yarn holder directly driven by motor, stepless speed regulation; Also designed with speed measurement function to accurately determine the rotating speed of yarn holder (motor)★ CPU automatically judges the rotating direction of yarn holder, processing and counting, the division value can be 1/10twist★ PC port and Printer port available★ Special software to analysis test resultOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
