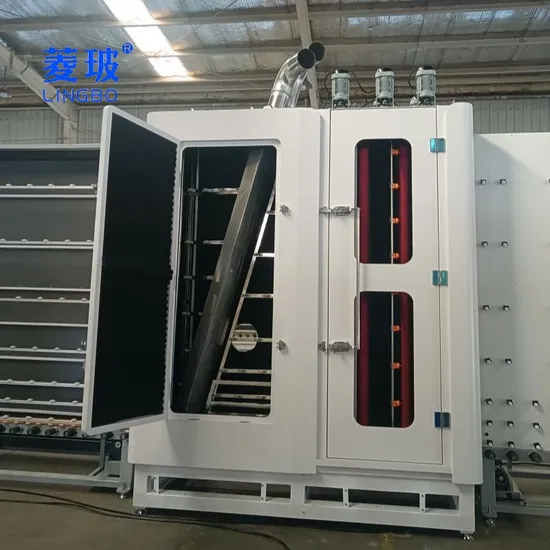

2000mm High Speed Float Glass Cleaning Machine Washing Machine Manufacturing

Product Description

1.Product Introduction of 2000mm High Speed Float Glass Cleaning Machine Washing Machine Manufacturing
Promotion Price of Automatic Vertical Glass Washing Machine is the first step of making insulating glass, the washing ability and quality decides the ability and quality of the final finished insulating glasses. To make sure to get high work efficiency, we adopts the vertical glass washing structure, easy to operate together with the insulating glass lines, and also save the workshop places.
Now we are holding the sales promotion on Automatic Vertical Glass Washing Machines, if any interest, feel free to connect us.
2.The advantages of 2000mm High Speed Float Glass Cleaning Machine Washing Machine Manufacturing
2.1.The whole washing section are made of stainless steel;
2.2.Converter driving for Low-E brush rotatory speed;
2.2.Automatically distinguish the coating side of coated glass and Low-E glass;
2.2.Upper part of washing box use the bevel gear connects; Washing machine adopts oil less bearing.
3.Technical Parameter of 2000mm High Speed Float Glass Cleaning Machine Washing Machine Manufacturing

Model	Power Supply	Air Pressure	Max Glass Size	Min Glass Size	Glass Thickness	Conveying Speed	Cleaning Speed	Overall Dimension
QXJ-1800	380V, 50HZ, 18KW	0.6-0.8 MPA	1800*2350 mm	260*450 mm	3-30mm	0-50 meter/min	2-12 meter/min	6800*1800*2750 mm
QXJ-2000	380V, 50HZ, 21KW	0.6-0.8 MPA	2000*2500 mm	260*450 mm	3-30mm	0-50 meter/min	2-12 meter/min	7800*1800*2950 mm
QXJ-2500	380V, 50HZ, 24KW	0.6-0.8 MPA	2500*3150 mm	260*450 mm	3-30mm	0-50 meter/min	2-12 meter/min	9200*2300*3500 mm

4.Products Feature of 2000mm High Speed Float Glass Cleaning Machine Washing Machine Manufacturing
4.1Conveying section:
4.1.1The whole machine adopts vertical inclined structure, conveying stable, and easy for loading big glasses.
4.1.2The backrest wheel adopts inlaid design and mounting bearings, which is firm and durable, runs smoothly, and has no damage or scratches to the glass.
4.1.3The body steel frame uses National standard square tube, this is the strong base of the machine working stable.
4.2Washing and drying section
4.2.1The backrest plate is made of special material, durable, and with high water resistance, we have already made waterproof test.
4.2.2The whole washing and drying section are made of stainless steel, built-in 3 pairs of brushes, 4 or 6 pairs of rubber roller design. One motor independently drives one brush, which is better to clean coated glasses and LOW-E glass.
4.2.3We are using gear driven inside of the washing room, so that it is more stable during processing small glass.
5: What is the service can you supply on 2000mm High Speed Float Glass Cleaning Machine Washing Machine Manufacturing?
5.1. Machine function introduction and quotation reply within 24 hours.
5.2.Industrial design or workshop layout design reply within 48 hours.
5.3.Customization feasibility reply within 72 hours.
5.4.Engineer onsite installation and operation guide if necessary.
5.5.Machine operation and maintenance guide service after sells.
5.6.Supply all the parts of the machine in whole lifetime.
5.7.PLC control system can be update and repaired in machine's whole lifetime!
5.8.Spare parts supplied in cost prices for all the clients.
