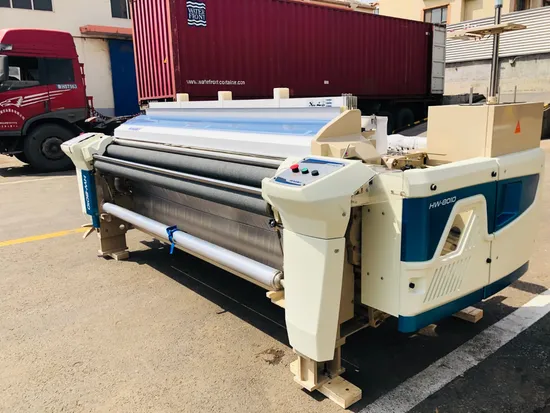

Hw8010 Textile Machine Water Jet Loom with Cam/Dobby Shedding

Product Description

1.Our Company Overview
*Founded more than 10,0000 machines are in operation worldwide, with more than 14 years of machines still running in China .
*After the appraisal by China Textile Machinery Association, the technical level of water jet looms produced by Haijia Machinery has reached the international advanced level.
*In 2018, 10,800 machines were sold, in 2019,more than 8000 sets were sold ,with a market share of 21.37%, ranking first .
*Adheres to the corporate mission of providing customers with competitive weaving solutions and services, and continues to create value for customers.
2.Our Machine Model
Water Jet Loom
HW3851; HW3873 ; HW861C; HW4008; HW4010; HW4012 HW5012; HW8010
Air Jet Loom
HA-N ; HA-9010
3.Machine Specification

Item		Standard specifications	option
Reed space	Nominal(cm)	150,170,190,210,230,260,280,320,340 360
	Neck in(mm)	0--600mm
Weaving scope	Weft Insertion Rate	1400-2200M/min
	Filament	8D-5000D
Weft selection		Single/Double /Three/Four Nozzle
Power		Super start motor, Direct drive Motor
	The motor rating(KW)	1.8, 2.2, 2.8, 3.0 , 3.7 ,4.0 , 4.2, 4.5
Weft insertion		Main nozzle, deputy nozzle together, use special reed	tensile
		Auxiliary main nozzle
		Deputy nozzle relay control
Shedding		Crank shedding
		Upper cam shedding
		Upper dobby shedding
Let off		Mechanical or Electronic
	Variable dis dia(mm)	800or 1000
Take up		Mechanical or Electronic
	The largest cloth diameter(mm)	φ520
	Weft density range	7.1-80.3 pick//cm(18-204pick/inch)
	Weaving length counting	Displayed on the keyboard display, with the function of scale parking
Beating-up		Crank type sley feet more beating -up mechanism
		Four linkage beating-up
Measuring weft Storage		Electric drum weft
Leno		Planetary gear type
Cutter		Mechanical scissors
Stop device	Weft stop	Reflex detector
	Warp stop		6 columns batching motion
	Other	Wring side,yarn end processing broken parking
	Fault display	Operating screen
		4 color indicator light display
Automation		The computer control system
		Monitoring and self diagnosis function

4.Our workshop
*More than 40 imported precision processing CNC, 80% of the parts are our own processing, quality control.
*The painting workshop adopts the fully-automatic painting line and spraying
robot independently developed by the company, and uses the same electrophoresis
coating process as automobile production within 3-5years machine no rust.
*Wallboard/beating style/gear/bearing, all the important part all uses same supplier and same standard with TSUDOKOMA China.
5.the high quality product
*Two times running life than ordinary brand, higher speed, more 16% efficiency of comprehensive production
*One worker can operate at least 24 sets machine, save labor 33%
*less maintenance cost
6.Customer Representative
Our products are sold all over the world.We have a solid customer base in India, Pakistan, Malaysia, Mexico, Morocco, Guatemala, Indonesia, Bangladesh, Nepal, Vietnam, Egypt, Turkey and other countries.
7.Exhibition Site
*Every year we go to various countries to participate in textile machinery exhibitions, to visit our local customers, organize various introduction activities, and invite customers to visit our factory.
8.Our service
1)Technical service
our company will provide best services to help you use our machine.As well,if you want to send your technician to our company to learn how to operate machines,we will very pround of it.
2)Quality Guarantee
We provide 12 months warranty.
3)Problem solving
We have professional engineers will deal with your problem at the first time.
In particular, we will arrange our engineers to go to your factory to debug the new machine until it runs well. In the early stage, we will also provide you with free services such as designing the layout of the factory and the layout of the water and electricity.
For any further information,just contact me on-line or mail me !
