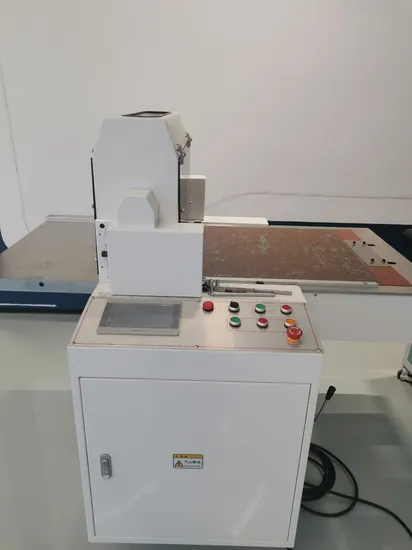

Automatic Pet Film Sheet Cutting Machine

Product Description

Main Parameters

Model	KD-QT300	KD-QT450	KD-QT650
Cutting Speed	200pcs/min	200pcs/min	200pcs/min
Cutting Precision	0.1mm	0.1mm	0.1mm
Feeding Width	300mm	450mm	650mm
Power	4.0kw	5.0kw	6.0kw
Voltage	220V	220V	220V
Dimension	1560*1380*1560	1620*1500*1560	1718*1600*1560
Weight	500kg	600kg	700kg

Features
- Overall casting of the frame for extending the service life
- Controlled by servo systems, have high-precison material pulling and jump-cutting.
- Feeding and receiving by pneumatic shaft, can cope with big rolling diameter and high mess materials.
- Equipped with safety light curtanis and induced draft to make sure its high safety and reliability.
- Adopted imported tools to ensure the endurance and longivity.
- Minimum cutting width ups to 0.5mm.
- Multi-functional use, allows simple tools installation.
Applications
The company's products include die cutting machine, laminating machine, slitting machine and product inspection machine, which are widely applied to such fields as computer, semiconductor,New energy ,mobile phone, television, LED, backlight, touch screen, glue, printing, solar energy, automobile, medical treatment, etc.
Our Service
* Within 24hrs feedback * Free sample cutting
* Factory inspection * Customization
* Installation & using training * Pre-sales technical support
* Prompt delivery * 12 months warranty time
After-sales Service
*One-year warranty, whole life technical support.After the warranty period is exceeded,if there is any problem,we will provide support for you in time(only charge travel expense and parts cost at most.)
*We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
About Us
Kedou, a supplier of quality die cutting equipment. At present, the company bases in Suzhou.
The company's products include die cutting machine, laminating machine, slitting machine and product inspection machine, which are widely applied to such fields as computer, mobile phone, television, LED, backlight, touch screen, glue, printing, solar energy, automobile, medical treatment, etc
It is a scientific and technological enterprise integrating R&D, production and sales. Its products now are widely used in in medical, electronics, automotive and printing industries.
Kedou provides high quality die cutting equipment to meet customer's needs. With vast experience in cutting applications and solutions, Kedou is capable of providing tailor-made systems to increase your production efficiency and save your production cost.
