Multi Functional High-Precision Milling Machine
| US$870.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CKM-KO
Type
Tool Milling Machine
Object
Metal
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
Precision
Certification
CE
Condition
New
Power
600W
The Vertical Axis Stroke
220mm
The Horizontal Axis Stroke
160mm
Main Shaft Trip
210mm
Transport Package
Export Wooden Crates
Specification
50X55X80 cm
Trademark
Xingdian
Origin
China
Packaging & Delivery
Package Size
50.00cm * 55.00cm * 80.00cm
Package Gross Weight
90.000kg
Product Description

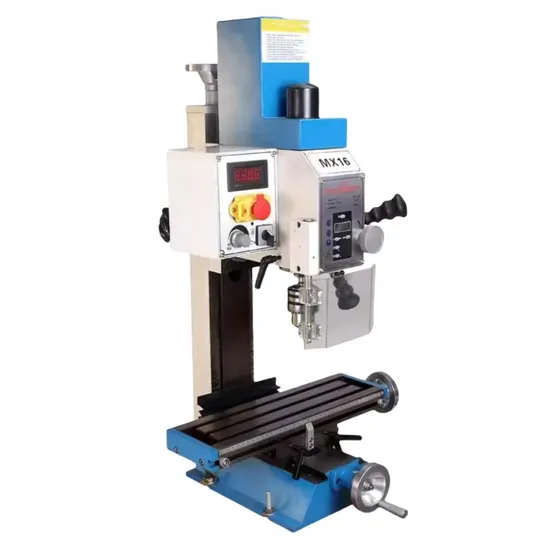

Product DescriptionMini Manual Metal Milling and Drilling Machine
Every Milling Machine is suitable for both rough & faster manual operation, accurate & slower turbine operation. Thanks for the features like, variable speed of spindle, digital speed or cutting depth readout, dedicated metric or imperial leadscrews and dials, 45°/90° left and right head tilt angles, Milling Machine is finally allowed to participate into a various of metalworking applications.
Detailed Photos
1.widely used, simple operation, and a wide range of processing 2.Guarantee the concentricity of the spindle is less than 0.009mm 3.Chuck runout accuracy of less than 0.05mm 4.Strong power, maintenance-free DC motor 5.After quenching and precision grinding of cast iron bed 6.High precision, quenching spindle
Product Parameters
| Model | 16 | Maximum vertical milling capacity | 16MM |
| Voltage | 220V | Distance between chuck and table | 210MM |
| Power | 600W | Morse dimension of main shaft hole | MT2 |
| The vertical axis stroke | 220MM | Sleeve trip | 52MM |
| The horizontal axis stroke | 160MM | Manual lifting stroke of spindle | 175MM |
| Main shaft trip | 210MM | Spindle speed | 50-2250RPM |
| Spindle box left and right rotation Angle | 900 | Table T slot width | 10MM |
| Clamping diameter | 16MM | Gross weight | 85/80KG |
| Maximum bore diameter | 16MM | The machine size | 480*450*760MM |
| Maximum face milling capacity | 52MM | Table size | 400*120MM |
