Tungsten Wire/ Filaments Ultra-Fine High Strength Wire and Molybdenum Wire, Rhenium Wire

Product Description

Product Description

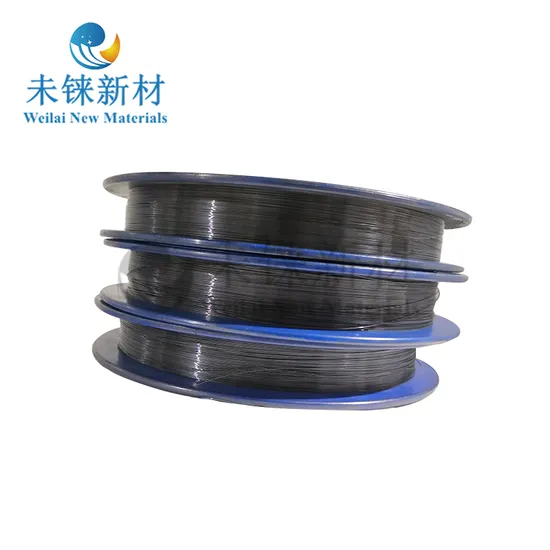

Thin Tungsten Wire Thin Tungsten wire Bless provide is made of high quality tungsten raw materials, mainly used in the manufacture of tungsten yarn for safety gloves, tungsten filament for light source. Diamenter from 15um, 20um, 25um, 30um, 35um are mostly used by customer. We monitor the overall diameter uniformity and test the extension of the wire during process to ensure best performance.
Black Surface & White Tungsten Wire
(Diameter from thinnest 0.006mm)
Tungsten Wire Parameters & Tolerance
Strong Equipment, Strong Quality
1. Swagging A rolling mill introduced from Germany, which it can be deeply process the rod core, which can make the inside struction more uniform. Unlike the early traditional technology, are mainly surface processing. 2. Straightness
Ensure thin wire straightness, we use high technology "3 Point 1 line" from wire relief to mold, and receiving smoothly without any curve.
Flaw Detection
Corresponding tests for each process of Tungsten wire. Under flaw detection, there are Grade A (2 crack points per 100 meters), B, C Grade. The more cracks, the more easily the filaments are broken during processing. We will choose different standard according different request for quality grade. Why Choose Us? 1. Customer
Panasonic, Miller Welds are what we supplied large welding rod for many years.
Certificate such as SGS, CE, ISO, ROHS, can be the proof of our quality.
2. Tungsten & Molybdenum Powder
Tungsten and Molybdenum Powder production are what our Bless original field over 20 years.
Our factory's location is also located in Luoyang. So from aspects of QC and price, you could benefits lot from us.
Raw Materials - APT Powder
Parameters Comparison
3. Quality Inspection ☆Equipment A rolling mill introduced from Germany, which it can be deeply process the rod core, which can make the inside struction more uniform. Unlike the early traditional technology, are mainly surface processing. ☆Property Online measuring device in the wire drawing process, which can monitor the overall diameter uniformity.
Bless Tungsten wire advantages 1. High temperature performance: According to different uses of customers, we can subdivide various high temperature performance requirements. 2. Diameter consistency: The weight difference between two consecutive 200mm sections of tungsten wire does not exceed 0.5% of the nominal specification. ☆Linearity: ☆Ordinary tungsten wire: National standard GB / T 23272-2009 - Straightening tungsten wire:
A. Diameter < 100 μm: 450mm natural droop height for per 500 mm wire segment;
B. Diameter ≥100μm: the arc height ≤10mm per 100mm chord length. ☆Surface state: Smooth surface, no cracks, burrs, scratches, pits, unevenness, oil stains and other defects. ☆Wire winding performance: During the wire winding process, the tungsten wire does not crack continuously.
What's application Bless customer use
Tungsten Yarn for Safety / Protection Gloves & Tungsten Filament for light souce.
Production Flow Chart
Other Customer case of Tungsten Wire 1. Tungsten filament from Korea. & Tungsten Stranded wire heater for US 2. Tungsten Wire for PVD Evaporation & 0.3mm Tungsten cutting wire for EU


Packaging & Shipping You can choose cartons or plywood case:(Our packing)
All goods will be shipped out by DHL or UPS or Fedex or SF as well as air freight agent company,you can choose any one only you like.
