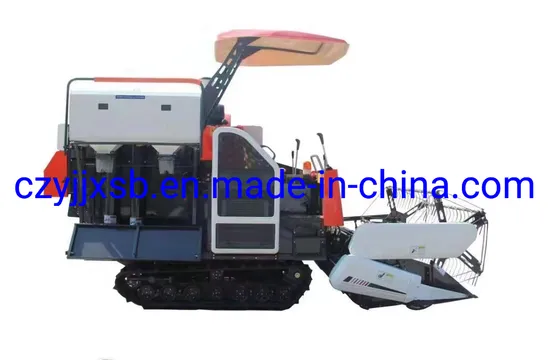

Combine Harvester with Small Grain Tank for Rice/Wheat/Corn/ Rapeseed/Soybean 4lz-4.0z
| US$15,000.00-17,000.00 | 3 Pieces (MOQ) |
Basic Info.
Model NO.
4LZ-4.0Z
Power Source
Diesel
Harvest method
Picking
Drive Type
Vee belt
Transmission
Soft Shaft
Portable Harvester Type
Combine Harvester
Color
Red
Condition
New
Application Field
Agriculture
Warranty
1 Year
Engine
102HP
Engine Brand
Changchai
Rubber Track
500*90*51
Cutting Header
2m
Feeding Cacapity
4kg/S
Crops
Rice ,Wheat , Corn,Rapeseed
Loading Plan
One 40hc Container Load 3units
Discharge Model
Manual Sacked
Transport Package
Nuke Package
Trademark
wincrops
HS Code
84335100
Production Capacity
10000units/Year
Product Description
Product Description4LZ-4.0Z Combine Harvester, Rice Harvester,Wheat Harvester,Corn Harvester,Rapeseed Harvester,Soybean Harvester
4LZ-4.0Z Combine Harvester can harvest rice,wheat,corn,Rapeseed,Soybean.
Use big power diesel engine 88hp Changchai engine.High working efficiency
Use 2m wide cutting header, big chasiss 500*90*50 rubber track,Big grain tank.can working in muddy field
Detailed Photos
Product Parameters
| Model | 4LZ-4.0Z | |||||
| Type | Longitudinal flow, full-feeding, rubber track, self-propelled | |||||
| Working dimension L×W×H | 4950×2450×2860 mm | |||||
| Weight (empty tank) | 2780kg | |||||
| Min. ground clearance | 275mm | |||||
| Ground clearance (under axle house) | 280mm | |||||
| Harvesting capacity (as per rice and wheat) | 0.23-0.85ha/hour | |||||
| Feed rate | 4.0kg/second | |||||
| Engine | Model | 4L88 | ||||
| Type | In-line, water cooling, four circles, supercharged, Electric EGR | |||||
| Burning chamber type | Direct-injection | |||||
| Cylinder | Dry type, 4cylinders, Diameter=95mm, work sequence:1-3-4-2 | |||||
| Power | 85HP /2600RPM | |||||
| Piston | Stroke 100mm, Swept volume 2.834L | |||||
| Wast gas exhaust | European II | |||||
| Mini. fuel oil consumption | ≤220g/kw.h | |||||
| Fuel tank | 90L | |||||
| Rubber track | Specification | 500×90×51 | ||||
| Track gauge | External 1555mm, Interal: 755mm | |||||
| Ground contact length | 1650mm | |||||
| Ground Pressure | ≤0.211(0.194) kgf/cm2 | |||||
| Walking gearbox | Type | Mechanical+HST==>stepless transmission | ||||
| Gear | Main gear: forward+reverse; Auxiliary gear: low, harvesting, high | |||||
| Braking type | wet friction plate | |||||
| Walking speed | Forward | Low gear:0-1.43m/s, Harvesting gear: 0-1.87m/s, High gear: 0-2.65m/s | ||||
| Reverse | ||||||
| Reel | Type | Tine bars + Eccentric bar frames | ||||
| Diameter | Φ900mm | |||||
| Bar quantity | 5 | |||||
| Control type | Hydraulic | |||||
| Cutter table | Control type | Hydraulic | ||||
| Cutting width | 2M | |||||
| Diameter of head auger | Φ500mm | |||||
| Coneyor type | Chains | |||||
| Threshing unit | Main drum dimension | Φ555×1800mm | ||||
| Main drum type | longitudinal flow | |||||
| Concave | 2 Steel grids | |||||
| Sieve | Shaking sieve, adjustable | |||||
| Cleaning type | Shaking sieve + blowers + re-threshing | |||||
| Blower type and qty | Centrifugal type; 1 | |||||
| Blower diameter | Φ350mm | |||||
| Grain tank | Small tank 0.33CBM | |||||
| Grain discharging | Manual sacked | |||||
