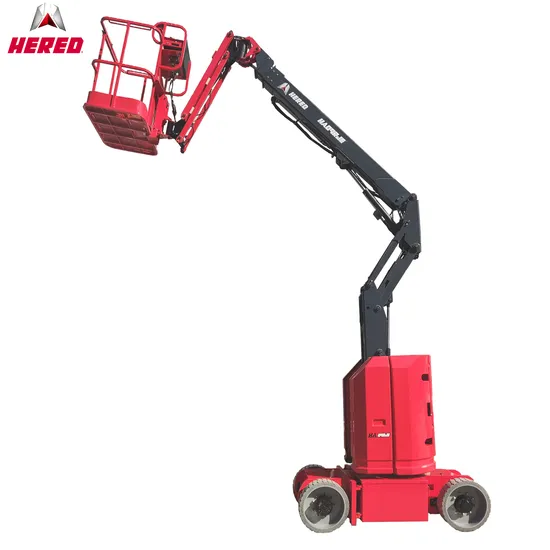

9 Meters Small Man Lift Electric Battery Drive Articulating Boom Lift

Product Description

Online consultation to get the lowest price

MODEL	HA09RJE
Max.Working Height	10.82m
Max. Platform Height	8.82m
Max. Horizontal Extension	6.29m
Max.Up and Over Height	3.77m
A- Length (Stowed)	5.38m
B- Width (Stowed)	1.19m
C- Height (Stowed)	2.04m
D- Platform Length	1.17m
E- Platform Width	0.76m
F-Clearance (Stowed)	0.09m
G-Wheel Base	1.58m
PERFORMANCE
Platform Capacity	230kg
Max.Drive Speed (Stowed)	4.8km/h
Gradeability	35%
Turning Radius(In.)	1.75m
Turning Radius(Out.)	3.35m
Turntable Rotation	355°Non-Continuous
Vertical JIB rotation	±90°
Platform Rotation	±90°
Tail Swing	0
Tilt Rating	3°
Max.Wind Speed	12.5m/s
POWER
Batteries(V/Ah)	48V/310Ah
Charger	100-240VAC/13.5A
Drive Motor	AC48V
Lift Motor	DC48V
Hydraulic Oil Tank Capacity	15L
Tires	24x7x17.5
Auxiliary power	Electric pumps
WEIGHT
Weight	6900kg

Located in Liaocheng, Shandong province, HERED(Shandong) Intelligent Technology Co., Ltd. was founded since 2008. After years of fast development, Hered specializes in the research, manufacture, sales and service of a wide range of access solutions and become a very important player in the MEWP business. HERED has achieved a number of awards and certifications in recognition of the brand's quality and achievements.
Hered has the industry's most complete product lines, with her own self-propelled scissor lift, articulating boom lift, and telescopic boom lift,with working heights from 6- 28 meters. Hered has very strict quality control process. Components and integrated lifts have the GB/CE/ANSI/IPAF certificates. Products are widely used in stadiums and plants, petrochemical sites, ship buildings, municipal works, ports, complex construction, commercial maintenance and so on.
HERED has served global customers in Europe, Southeast Asia, Africa and USA, totally more than 40 countries worldwide. Hered aims to provide intelligent, efficient and safe aerial work solutions to the global partners.
1. Q: Are you a factory or trading company?
A: HERED(Shandong) Intelligent Technology Co., Ltd. is a factory with 10 years experience in the scissor lift articulating boom lift, and telescopic boom lift. 2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Liaocheng City ,Shandong,China. We will pick you up from Jinan or Qingdao Airport. Warmly welcome to visit us!
3.Q: What is your after service ?
A: Our company provides free lifelong after-sales service, 24 hours to reply to all inquiries.
4.Q: What is your warranty?
A: The"HERED"lift quality warranty period is 24 months(counting from the date of
shipment.)
5. Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, etc.
6. Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before shipment.
