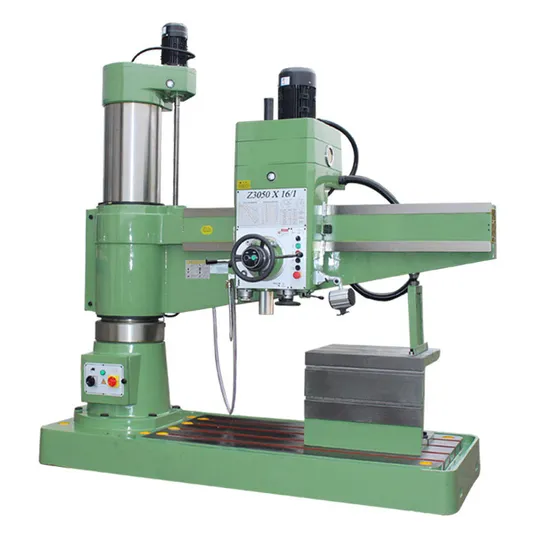

Z3050/16 Radial Drilling Machine Drilling Machine Hydraulic Radial Drilling Machine

Product Description

Product Description
Z3040X13 Z3040×16 Z3050 Z3063 Z3080 Radial Drilling Machine FEATURES:
1. Using the hydraulic gear-change structure can save subsidiary time.
2. The forward rotating of spindle, stop (brake), shift and neutral-gear ect. are all controlled by a single handle, which is very convenient for operation.
3. The clamp structures of headstock, radial arm and internal and external column are controlled by hydraulic-driven rhombic block, which is very dependable.
4. The machine has sound and safety protective installation and external column.
5. We take lines of efficient measures during the structure design and manufacture of this machine to ensure a durable accuracy and longevity of the machine.
6. The electric equipment of this type of machine can make sure the safety of human life; what's more, it is dependable, durable and easy to maintain.
The large weight and stiff construction of the drill ensures stability and vibration free operationThe cube table ensures easy adjustment and filling of the workpieceHeight adjustment of the arm by motorControl panel located on the front of the drill for better performance and ergonomicsThe polished surface of the column ensures easy, free and precise travel of the armDrill equipped with manual blocking of the head and arm of the columnThe large speed range ensures precise and fast processing
Product Parameters

Modle	Unit	Z3032×10	Z3040×13	Z3050X16/1	Z3063x20/1	Z3080x25
Table SIZE (L*W*H)	mm	630X500X500			800X630X500	1000X800X560
Dimensions of Box Table	mm	630X500			800X630	1000X800
T-slot	No.	5	5	5	7	7
T Distance between two adjacent T-slots		150
T Width of T-slot		22
Dimensions of base	mm		2400X1000X200		2900X1250X250	3530X1400X300
Working surface of base	mm		1560X830		1950X1080	1200X2380
T-slot/Width/Distance		4/28/180			4/28/250	4/28/276
Distance from spindle axis to column	mm	360-1000	360 - 1300	350-1600	450-2000	500-2500
Distance from spindle nose to table surface	mm	140-1100	260 - 1300	320-1220	400-1600	550-2000
spindle head travel(horizontal)	mm	1000	1100	1250	1600	2000
Spindle taper		MT4	MT4	Morse No.5	Morse No.5	Morse No.6
Quill travel	mm	220/280		315	400	450
Max.drilling diameter	mm	35	40	50	63	80
Speed Range /steps	rpm	75-1220	28-1200	25-2000(16)	20-1600(16)	16-1250(16)
Max.output torque of spindle	N.m		500	500	600	1568
Spindle feed/steps	mm/r/step	0.1,0.16,0.25	0.1-0.25	0.04-3.2/16	0.04-3.2/16	0.04-3.2/16
Spindle motor power	kW	4			5.5	7.5
Elevating motor	kW	1.5	1.1	1.5	2.2	3
Coolant pump	kW	0.09	0.09	0.09	0.125	0.125
Clamping type		hydraulic
Overall dimension (L*W*H)	mm	1500×705×2050	1600×700×2050	2500X1070X2840	3080X1250X3400	3730X1400X4025
Package dimension (L*W*H)	cm	158×75×213	167×77×217	258X111X270	318X142X309	380×147×410
Net weight	kg	1100/1200	1500	3500	7000	11000

Radial drilling machine is a kind of hole processing equipment, which can be used for drilling, reaming, reaming, tapping, end face repair and other forms of processing. According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among all kinds of drilling machines, radial drilling machines are easy to operate, flexible, widely applicable and typical, especially suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general machining workshops.
