China CNC Guillotine Metal Plate Cutter Machine

Product Description

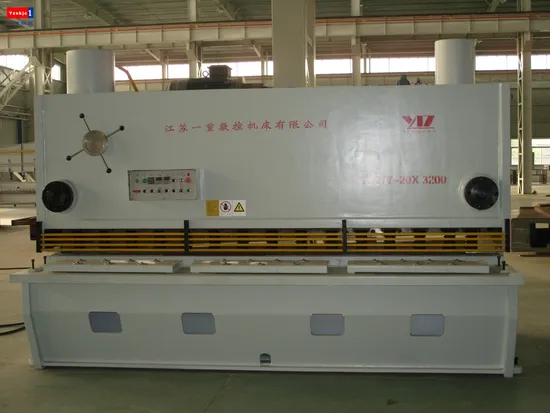

CNC guillotine metal plate cutter machine
Product Description
Main technical parameters of this CNC guillotine metal plate cutter machine:

No.	item	parameter	unit
1	Blade clearance	70	mm
2	Max. Cutting thickness(carbon steel)	50	mm
3	Max. Cutting thickness(stainless steel)	25	mm
4	Max. Cutting width	2500	mm
5	No. of stroke	5	times/min
6	Blade length	2600	mm
7	Cutting angle	1°30′-4°	angle
8	Back gauge distance adjustment	20-1000	mm
9	Main motor model	Y132M-4
10	Main motor power	55	Kw
11	Overall Dimensions	3350*2550*3550	mm
12	The weight of machine	about 45T	Ton

Main configurations:

Main motor, Simens	Low noise gear pump	Blade clearance control
Oil cylinder	Spherical support	Fence
Electrical components	AC motor	Workbench

Main configuration list of this CNC guillotine metal plate cutter machine:

No.	Item
1	Oil pump, low noise gear pump, Chengjie, China
2	Valve, Yeer, Shanghai, China
3	Electrical components, Schneide, France
4	Tubing, EMB, Germany
5	Blade material:6Crw2si
6	Ball screw linear guide, Hiwin,Taiwan,
7	E21S controller,China(DELEM DAC310T,DAC360T optional)
8	Rapid and precise blade clearance adjustment by single handle on the side frame
9	Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
10	Cutting Line Illumination and wire for shadow line cutting
11	Counter of Strokes, Cutting Length Adjustment
12	Hydraulic and Electrical overload protection
13	Squaring Arm and Front Support Arms
14	Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
15	Light guards(option $300.00)
16	Backguage pneumatic support(optional)

Packaging & Shipping
Company Profile Our company:
Jiangsu Yizhong CNC Machine Tool (Group) Co., Ltd is a Top machine tool factories for plate processing in China, which set up in 2006, located in Chengbei industrial area, Yangzhou city, Jiangsu province. It covers an area of 498700 square meters and nine production lines. We' re also the National Torch Plan and High-tech enterprise.
Our main products includes Hydraulic guillotine shearing machine ,Plate rolling mchine (also production line ),Plate hydraulic press machine ,Plate leveling machine ,and plate planer and milling machine . Meanwhile , with a powerful technician team, OEM machine is our strong suit .
With many years' hard-working, we have built long term and close cooperation relationships with many friends, such as Russia, Australia, United Kingdom, Italy, South Americas, Egypt, India and so on,welcome
your consulting
