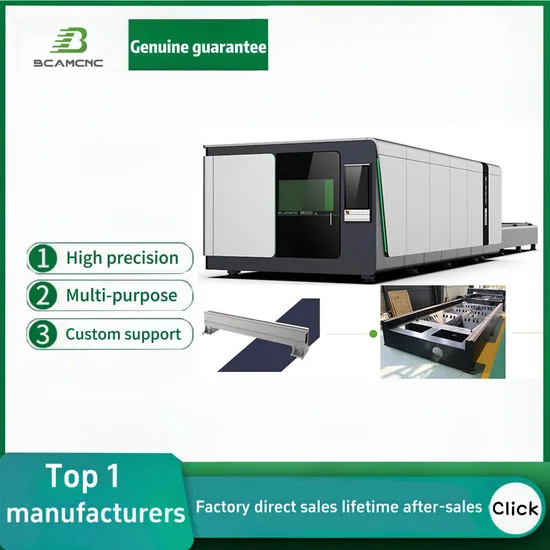

High Power 6kw Carbon Steel Fiber Laser Cutter Metal Machine Full Encolsed with Exchange Platform Laser Cutting Machine

Product Description

High power 6kw Carbon Steel Fiber Laser Cutter Metal Machine Full Encolsed with Exchange platform Laser Cutting Machine Product Description
Industrial Fiber Laser Cutting Machine (1500W-20000W)
BCM series is designed for different production scenarios. It is designed for small and large production runs, thin and thick sheets, and is available for 7 days per week, 365 days per year. Discover the most versatile series of cutters for efficient and economical working.
1. BCM Series Pure technology, developed by BCAM
With dynamic Taiwan linear motors on three axis, a modern composite body and the Raytools cutting head, also provides high performance. The Laser cutters in the BCAM HiPower series achieve positioning speeds of up to 150 m/min, 3G acceleration and fber laser source power of up to 20 kW..
2. The ideal machine concept
The BCM series of laser cutting machines is characterized by high dynamics and top quality. The machines achieve acceleration of 3G and a positioning speed of up to 150m/min. They are characterized by the highest cut part precision and failure-free operation. Each laser cutter is available with a fber laser source with power ranging from 1 to 20 kW. Laser metal cutting machines take up the least amount of room of the machines available on the market, and easy-to-use software makes it possible to start work immediately.

Models :	BCM6020PE
Voltage	380V
control system	Cypcut
ball screw	Taiwan PMI
assistance	Wifi remote
motor and drivers	Japan Yaskawa servo
Location system:	Red dot indicator
laser cutting head	Au3Tech
square guide rail	Taiwan Hiwin
water chiller	Industrial CW6200
Application :	Metal cutting
Heavy duty body frame thickness	more than 9500kg

Laser(source)	1kw	2kw	3kw	4kw	6kw	8kw	10kw	12kw	15/20kw
mild steel(mm)	10	16	20	20	30	40	50	60	60
stainless steel(mm)	4	10	15	20	30	40	50	60	60
aluminum(mm)	2	6	12	15	30	35	40	50	50
brass(mm)	2	4	6	8	12	15	20	30	30
copper(mm)	1.5	4	6	6	10	15	20	25	25

Detailed Photos

Auto-focusing laser head
1. Laser head follow up function 2. Quick piercing 3. Long service life
Machine Table
The graphite plate with obvious protective effect is used to form the anti-burning partition, which can effectively prevent the beam from damaging the lathe and left and right mechanisms of the bed on the steel cutting machine laser

Aluminum alloy beam

The laser cutting machine quipped the hollow aluminum alloy beam has undergone special processing
Water cooler

It is dual temperature and dual control for the Metal Fiber Laser Cutting Machine. It has 2 water channels to cool the two core positions-laser and laser head.

Application
Materials
Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting.
Application Industry
Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc
Related Products

If you have any questions, please contact us

Company Profile
Jinan BCAMCNC Machinery Co., Ltd.
Established in 2002, specializing in CNC machinery with rich experience!The company has two factories: CNC Router and laser machine factories and plants.

BCAMCNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficienct CNC machines worldwide. With a strong staff team, "Brand BCAMCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.

"BCAMCNC Products are widely used in the fields of advertising, furniture, jewelry pieces, gifts, packaging etc., materials of metal, wood, stone, leather etc."BCAMCNC"is wellknown not only in China, but also in Russia, Southeast Asia, Middle East, Africa, the Americas, India and other foreign countries.

BCAMCNC has already established branches in Shanghai , Dongguan, as well as foreign countries, such as Armenia , UK and Georgia. This year, BCAMCNC established long-term cooperative relationship with internationally renowned company, Shanghai Bcamtech CO.,LTD . In addition, we have established long-term cooperative relations in the field of laser machines with BCMTECH to develop CNC solution .
BCAMCNC always adhere to the principle --- First class reputation, first-class service and excellent products.

By Global High-Tech CNC Equipment Supplier---BCAMCNC


After Sales Service
1. For whole fiber laser cutting machine, we provide 2 years warranty and lifetime after-sales service, we will provide the consumable. parts at an agency price when you need replacement.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Our engineer could support you technology to your country if necessary.
4.Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
5. English manual and CD video for machine using and maintaining will send to you with the machine.
Packaging & Shipping
1.How is the packing?
1) packaged with Standard plywood case, its compressive strength and bearing quality is better.
2).the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3).when importing, the plywood case is with fumigation-free, the procedure is simple.
2.How long is the delivery time?
For standard machine, it would be 7-10 working days; For non-standard and customized machines
,it would be 15-30 working days.

FAQ
Q1: How do I get the best price?A: Different type of CNC machine apply to the different price.
Q2: What machine suits me best?A: Different material and the different model apply to the different machine.Please tell us what's material you want to cutting or engraving ?And what's MAX size of carved material ?We will recommend the most suitable model and the best price for you.
Q3: What should I do if the machine fails during warranty period?A: Just contact us----our sales are online for 24-hours and ready to help.Replacement of damaged parts for free(make sure it is not broken because of wrong operation).The CD and operation manual----It shows the most common failures in working processing and how to solve the problems.
Q4: Are you trading company or manufacturer?A: We are a factory direct sale, can guarantee you got the best product at the best price.All the products have CE, ISOcertifications, all the machines are tested well before delivery. There is a 12 months warranty.
Q5: How long is your delivery time?A:Generally it is a weekday if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to your quantity.

If you have any questions, please contact us
