Tomato Sauce Processing Machine

Product Description

Complete production line for tomato paste processing, to obtain tomato paste, tomato sauce, tomato ketchup and drinkable tomato juice. We design, manufacture and supply complete Tomato Puree Making Machine including:
- Receiving, Washing and Sorting System
- Crushing and Refining System
- Forced Circulation Continuous Evaporation System
- UHT Sterilizing and Aseptic Filling System
- Ketchup and Sauce Production System
- CIP Plant Cleaning System
Main Features of Tomato Puree Making Machine:
1. Customization: 20 Tons/D - 1500 Tons/D available.
2. Advanced technology guarantees high output rate, High Juice Yield: Up to 97%.
3. Low temperature evaporation resulting improved quality of products.
4. Energy-saving design, low energy consumption, environmental protection.
5. All accessories from world famous brand, high stability and low failure rate

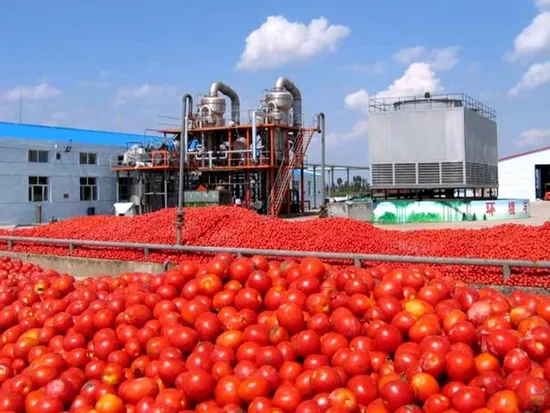

Receiving and Elevating 1. It is advisable to install cement pools in the plant, which provides the processing line with a constant flow of raw material.
2. Fresh and ripe tomatoes cannot be stored for over 24 hours at temperature of over 30°c.
3. Chain and plate elevators are normally used for tomatoes elevating, which do little harm to tomatoes. The elevators are
equipped with sprayers, letting the tomatoes be re-washed during the processing of elevating.
4. Motors are equipped with stainless steel protective shield, which keep the motors from rain and snow in outdoor.
Washing and Sorting 1. Bubble washing machine/floating washing machine washes the tomatoes by floating water, which comes from bubble generator quipped at the bottom of the machine. There is no damage brought by bubble washing while the tomatoes are thorough washed.
2. Waste and sand sink to the bottom and are discharged by our special design.
3. Rolling bar design & speed adjustable.
4. The machine is equipped with waste conveying system, sending the waste directly to tank.

Refining and Evaporating 1. Rotated speed can go as 1470r/min, which generates large centrifugal force and helps increase the juice yield.
2. Every blade goes through dynamic balance test, with the feature of lower noise and smoother operation.
3. Forced circulation evaporator: Continuous concentration under vacuum and low temperature. Sterilizing and Aseptic Filling 1. Tube-in-tube sterilizer, which contains heating, sterilizing and cooking section is mainly compose of tube in tube
heating-exchanger and feeding pump.
2. Four layers. Auto backtrack of no enough sterilized.
3. Mainly composed of aseptic filling head (single/double), operation system, computer controlling system, weight measurer, operation, platform, and etc.
4. Package forms can be various kinds as customers request.

Automatic Samll Tomato Paste Pulp Puree Production Processing Making Machine
Processing Capacity (Fresh Fruit)	60	150	250	500	750	1000	1250	1500
Water Consumption (t/h)	7	13	22	44	66	88	110	132
Power (kw)	84	152	412	636	955	1292	1411	1558
Steam Consumption (t/h)	1.7	3.9	5.2	9.1	15.1	20.2	24.6	29.2
Compressed Air Consumption (t/h)	66.2	66.2	66.2	66.2	66.2	66.2	66.2	66.2
Cooling Water Consumption (t/h)	125	317	407	585	825	1075	1410	1630
