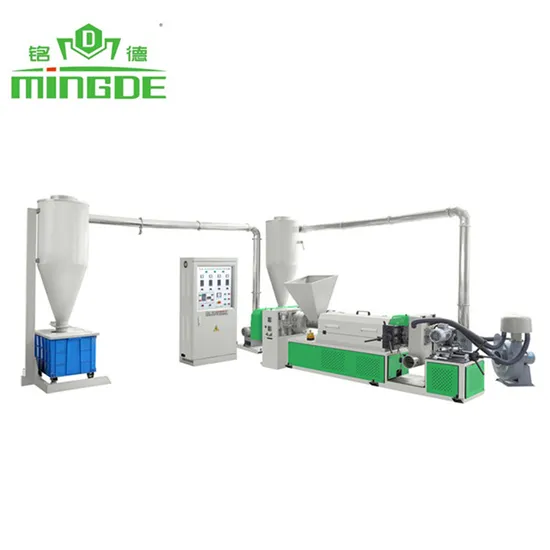

Automatic Air Cooling Waste Plastic Film Recycling Granules Making Machine

Product Description

High Quality Semi Automatic Waste Plastic Recycling Machine
Air Cooling Hot Cutting Plastic Film Recycling Machine
This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast screen changer and automatic temperature-controller.
1. Hot-cutting & wind cooling.
2. It is equipped with automatic constant temperature, motorized net changer (hydraulic net changer is optional).
3. It also can pelletize the crushing material after fitting with an force loader.
4. The cutting machine adopts speed regulating motor. Which can cut the material according to the feeding speed of the extruder, with such features as high output, low noise, stable performance and easy operation. It is a more ideal waste plastic film regenerative pelletizer.
5. Feeding unit adopts force feeder.
6. The helical gear reducer with hard teeth is applied to the extruder and the screw.
7. Cylinder and screw are made of 38CrMoA1A with nitrogen treatment.Company:

Our Advantages:
1. ISO 9001: 2000, GSG, SGS, CE, Production Assessment, Gold Supplier certificated
2. All machines will be examined and tested before delivery by 5 professional engineers (with more than 15 years machine experience)
3. Perfect after-sale system: We have more than 5 experienced technicians work abroad.
5. Yearly Production Capacity -- 200-300 sets
6. Prompt Reply Within 12 Hours
Have any require, you could contact with us:
Add: No. 168 Daohang Road Economic Development Industrial Zone Ruian Wenzhou, Zhejiang, China

Model	MD-R80
Suitable	HDPE/LDPE/LLDPE
Max.output	65KG
Main Motor	18.5kw with delta inverter
Screw Material	Bimatic
Barrel Material	38crmoala
L/d	18:01
Temp.control	4zone
Barrel Cooling Fan	0.2kw*2pcs
Screen Changer	Manual type
Heat Cuyying Motor	1.1KW with inverter
Vacuum Fan	2.2kw
Transfer Fan	2.2kw
