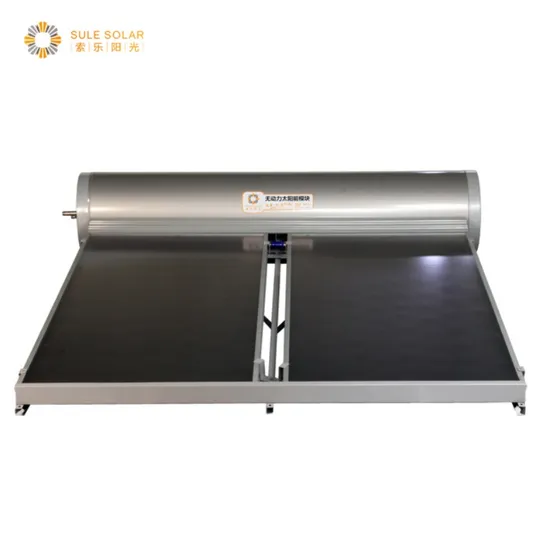

Hot Selling Solar Thermal System Factory Supplied for Home Bathroom Pressurized Compact Flat Plate Panel Solar Water Heater

Product Description

Hot Selling Solar Thermal System Factory Supplied for Home Bathroom Pressurized Compact Flat Plate Panel Solar Water Heater Product Description Sola Solar pressurized fresh water solar adopts RHEs reverse heat exchange technology. The open water tank is used to store heat energy, and the closed heat exchanger is used to exchange heat and take water. Pressurized water does not need to add booster pump, and the water quality is fresh without secondary pollution.

Name	Flat type solar water heater
Model	PFSLP-240/4.0/0
Types of solar water heaters	Pressurized solar water heater
Collector	Flat plate collector
endothermic layer	Whole board blue film
Core runner	copper pipe
Collector Specifications	1000*2000*80mm
Number of collectors	2 pieces
frame	6063-T5 aluminum alloy
Inner tank material	0.5mm SUS304 stainless steel
Inner tank diameter	Φ380mm
Outer tank material	0.4mm color galvanized steel plate
Insulation	50mm polyurethane foam
Heat Exchanger Material	316L stainless steel
Cold/hot water port	DN20-65
Product Weight	130kg
Requirements for roof loads	100kg/m2
Contoured collector area	4.0m2
water tank capacity	240L
full water weight	370kg
Product Size	2355mm length (tank side)
	2678mm width ( collector side)
collector inclination	5°~30°
Electric heating (optiona)	220v50hz/110v60hz, 1500W

Product descriptions
NO.1 Pump free Solar heater Features:

NO.2 Product detaileds parts:
NO.3 Technology design introduction:
No.4 Installation diagram:
NO.5 Application presentation
