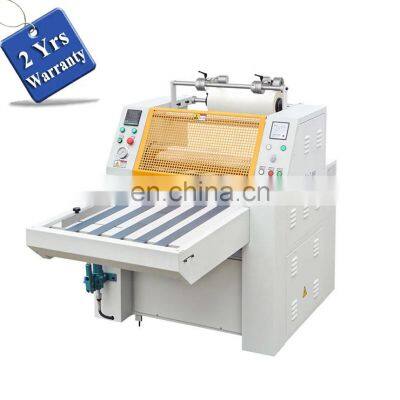

YDFM720 Glossy & Matte Plastic Film Thermal laminating machine, paper sheet feed hot press laminator

Product Description

Product Description
YDFM720 YDFM720 Glossy & Matte Plastic Film Thermal laminating machine, paper sheet feed hot press laminator YDFM720 Glossy & Matte Plastic Film Thermal laminating machine, paper sheet feed hot press laminator
Videos
Video demonstration only for reference
Video 01: /watch?v=TOGiiRJaK5M
Product Description
Features:
1, One-piece construction design makes the machine run more stably, and lengthens the machine's lifetime.
3, Manual paper feeding with overlap system and pneumatic seperation unit.
4, High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
5, Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
6, Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
7, Film perforating wheel perforates film edge to make the separation of laminated paper easy.
9, Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon
Parameters:

Model	YDFM-520	YDFM-720	YDFM-920	YDFM-1200
Max Laminating Width	480mm	620mm	820mm	1100mm
Laminating Speed	0-25 m/min	0-25 m/min	0-25 m/min	0-25 m/min
Laminating Temperature	50-130℃	50-130℃	50-130℃	50-130℃
Total Power	3kw	4kw	5kw	6kw
Total Weight	300kg	400kg	500kg	650kg
Dimensions (mm)	1380*900*1400	1380*1100*1400	1650*1300*1400	1800x1700x1400

Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
Certifications
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Packaging & Shipping
Wooden Case Loading and Transport
