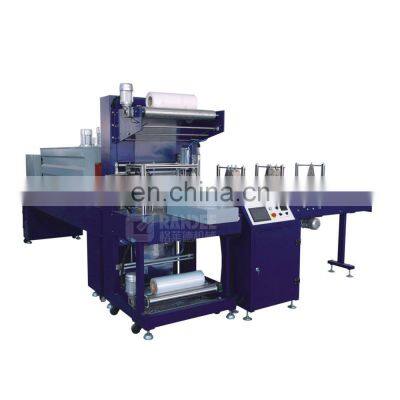

Automatic PE film heating shrink packing machine heat seal wrap tunnel packaging wrapping machine

Product Description

Product Description
Automatic PE film heating shrink packing machine heat seal wrap tunnel packaging wrapping machine
Product Description
Machine description and features:
Packing Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling
1.Feeding: The bottles enter into conveyor trough of sealing machine, on the conveyor trough there are adjustable guardrail. The feeding will stop when the bottle arrived to the set position.
2.Pushing bottles: After the bottles arrived to the pushing platform, the pushing cylinder will work at the same time to push the bottles over the sealing-cutting line.
3.Cover film and sealing: After bottles pushed over the sealing-cutting line, the upper pressing device will press the bottles, this process will protect the bottles falling. After pushing cylinder return, the film sealing cylinder and film cutting cylinder will work together to finish the film covering and sealing process.
4.Shrink: After finishing the film covering the bottles will enter to the shrinking stove.
5.Cooling: After shrinking, the bottles will enter into the cooling device which installed on the end part, then enter into the stock shelf and waiting for stacking.
Main machine :
Feeding bottle conveyor belt
Cutting part
PE Film
Photoelectric detecting bottles
Shrink tunnel
Shrink tunnel with Stainless Steel belt
Or Teflon belt
Main technical parameter:

Name	Automatic PE film heat shrink packing machine
Model	GD-150A
Maximum packing size	420*300*350mm(LxWxH)
Max. sealing size	650mm
Level of the conveyor	950 ± 30mm
Material of shrink film	PE
Maximum shrinkage temperature	160-260℃
Maximum production speed	8-12 packs / min
Working pressure	0.6-0.8Mpa
Power (rated/real)	26kw / 16kw
Weight	1500KG
External Dimension	L5050*3300*2100mm
Dimension of main machine	L1220*W1000*2250mm
Dimension of shrink tunnel	L3900*W1000*2100mm
