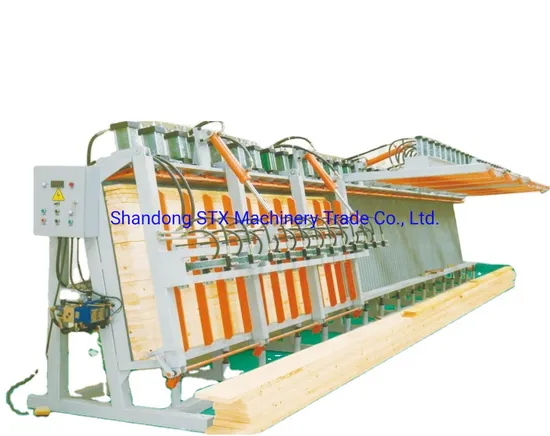

Digital Display Wood Composer Machine for Glulam Beam Production 6200mm

Product Description

Digital Display Wood Composer Machine for Glulam Beam Production 6200mm

Characteristics
1. This machine adopts hydraulic principals characterized by a stable motion speed, huge pressure and still pressing.High precision and flatness work table, and pressure from top and front, which can prevent the curved angle and make the board glued completely. Low sandingamount and high output. 2. According to different working specifications (length or thickness), system pressure can be adjusted according to different pressure required.There is pressure-recovery system, in which upper and lower pressure limit can be set. When pressure lost below lower limit during production, this system will start automatically to raise the pressure to upper limit. 3. Using numerical control technology, one-key operation, according to the program settings, automatically carry out a series of actions such as pressurization, pressure compensation, pressure holding and press time control, to avoid operational differences caused by human factors and ensure the quality of the puzzle.

Technical Parameters

No	Item	Data
1	Max. working length	6200mm
2	Max. working width	1300mm
3	Working thickness	10-150/200/250/300mm
4	Top cylinder diameter	80mm
5	Top cylinder qty. of each side	12/14/16/18
6	Side cylinder diamter	80mm
7	Side cylinder qty. of each side	12/14/16/18
8	Lift cylinder diameter	63mm
9	Lift Cylinder qty. of each side	2
10	Total power	5.5KW
11	Overall dimensions (L x W x H)	6800x 2150 x 2210mm
12	Weight	6500-8100kg
13	Rated pressure	16Mpa

Detailed Image

	Production process: Laser cutting to prepare machine body
Production process: Painting shop, machine parts are painted by ourselt, ensure the painting appearance and quality
	Production process: Welding and assembly
Production process: Assembly
	Hydaulic parts (oil sealing) are made by ourselt, can garantee the quality and we assure all service life warranty for these parts.

Loading and Package
Our Service
Pre-sale Service
· Tailored configuration solutions according to your needs.
· Customized service available.
· Free workshop layout design.
· Free visit reception service.
· Free supply chain support service.

After-sales Service
· Professional on-site installation, training and maintenance.
· Timely and efficient online and video technical support.
· Super 18 months warranty since package opened.
· Reliable lifetime spare parts support and technician service available.


About Us
Since established in 1990s years, we keep our attention on Four side moulder, Wood sanding machine, Optimizing cross cut saw and double end tenon machine. Depand on powerful R&D capability, strong machining capacity and high quality products and service, we have becoming a leader manufacturer in China
