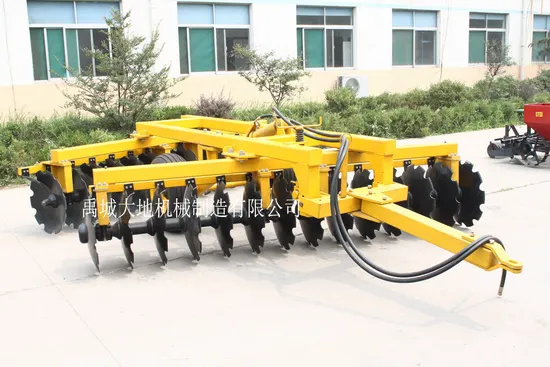

Trailing Offset Disc Harrow
| US$1,000.00-4,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
1BZN-3.0/3.5/4.0
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Match with Tractor to Use
Arbor Configuration
Horizontal Axis
Color
Yellow
Warranty
One Year
Colour
Yellow,Blue,Red,Green
Price
Best
Quality
Best
Transport Package
Iron Shellframe Box
Specification
ISO9001: 2000
Trademark
Dadi
Origin
China
HS Code
8432210000
Production Capacity
1000 Sets/Month
Product Description
Trailing offset disc harrowWorking width: 2-7m
No. Of disc: 16-56 discs
Matched tractor power: 80HP to 300HP
The series heavy-duty off-set disc harrows are mainly used for cleaning away stubble of plants before tillage, or uncultivated land and in sticky heavy clay soil fields. They could also be used as a plough for primary tillage in dry cultivated fields. The surface of the field after harrowing is level and the crushing and clearing ability of the harrow is satisfactory.
The series products are all fitted with hydraulic rubber wheel for transportation. They are easy to be hook up, simple to be adjusted, and easy to be transported and change direction on the edge of fields.
| Type | Advanced version | |||
| Model | 1BZN-4.0 | 1BZN-3.5 | 1BZN-3.0 | |
| Working width | mm | 3975-4000 | 3420-3580 | 2915-3050 |
| Total Weight | kg | 2310 | 1980-2040 | 1880-1930 |
| Qty. of disc | pcs | 32 | 28 | 24 |
| Dia. Of disc | inch | 26" | ||
| Thickness of disc | mm | 6 | ||
| Spacing of disc | mm | 270 | ||
| Weight of spool | kg | 11.8 | ||
| Thickness of frame | mm | 8 | ||
| Lead beam | mm | 120× 8× 120 | ||
| Model of tyre | 11L-15, 12PR | |||
| Qty. of bearing | per | 16 | ||
| Bearings category | per | taper roller bearing | ||
| The bearings assembles a way | - | double seal combination type | ||
| Weight of bearing assembly | kg | 22 | ||
| Qty. of bearing assembly | set | 8 | ||
| Axle of disc | mm | Round diameter 42 | ||
| Ground clearance | mm | 260 | ||
| Overall Dimension (LxWxH) | mm | 5500× 4100× 1230 | 5450× 3960× 1230 | 5370× 3560× 1230 |
| Matched tractor power | hp | > 100 | 90-140 | 80-120 |
| Thickness of steel plate for frame | mm | The plate of advanced version is not less than 2mm more than ordinarily. | ||
